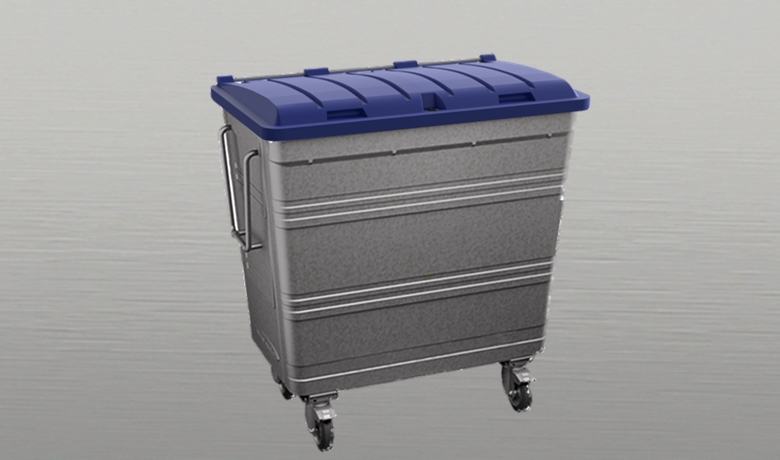

The Taylor Mk2 770 Litre General Waste Bin

2.0mm** thick galvanised steel, reinforced lifting comb bar with 7 gussets for additional strength and 5mm thick end plates making this ultra-strong Extra strong 2.0mm** thick galvanised steel base with strengthening ribs in sump provides rigidity and assists in water drainage to optimise container life 1.7mm* thick galvanised steel body with fully internally welded seams to prevent water ingress Danish handles supplied as standard for the optimal ergonomic benefit to users

Taylor Mk2 770L: 770 Litre Trade Bin, Galvanised Steel Shell, Internally seams welded, The comb lifting bar is manufactured from 2.0mm** thick galvanised steel and features 7 gussets for additional strength. DuraFlex Trade Lid is Manufactured from high-grade UV-stabilised polyethylene. With Standard Flat Trade Lid, Taylor 200mm Steel Centred castors, 2x Back / Rear swivel Castors, 2 x Foot operated braked castors foot operated, Danish Side Handles for easy Manoeuvrability in confined bin storage areas

770-litre Galvanised Steel 4-wheel General Waste and Recycling Mk4 and continental 770 bins offer the perfect medium-sized solution for your waste containment needs in a compact footprint where access may be an issue and space is limited. Compliant with EN840,
 giving customers confidence in both product quality and safety,9 standard build options



All images are linked Showing 770 Litre Full Specifications and Bin Dimensions


Available with either a Drop Front or Drop Back Panel

Taylor Mk4 Drop Front and Drop Back containers have been created to help avoid the health and safety risks associated with handballing bagged or bulky waste, often an important requirement within retail and manufacturing environments and is easy to empty please note *Drop front panel bin isn’t fitted with comb but can be fitted with weld on DIN lift points.

All four castors are 200mm Steel centred wheels manufactured with needle bearings, grease and rubber optimised for performance steel-centred rubber-tyred swivel castors, two of which are fitted with trailing brakes (Brakes are press to lock, press to release) are bolted on for easy replacement. Two-foot operated, trailing braking wheels at the front with two swivel wheels at the back. (Not Welded On or Plastic Centred Castors) 200 mm Standard castors Rubber tyres, Needle roller bearings, Trailing brakes, Pressed hubs, 3.5mm top plate, Zinc and clear passivate, 1230 Kgs static load rating, 690 Kgs dynamic load rating.

Caster Options:

Heavy Duty 200mm Casters: Mainly used with bins fitted with heavy-duty base, suitable for dense waste materials (Food Waste) and also for loading waste compactors and bins fitted with External and Internal fork pockets.200 mm Heavy-duty Elastic or polyurethane tyres, Ball race bearings, Leading brakes, Cast hubs, 5mm top plate, Zinc and gold passivate, 3000 Kg static load rating, 1500 kg dynamic load rating.

Non-marking castors are mainly used by Airports and Hotel lobbies, Schools, Hospitals, Offices, and Shopping Centres, which have none, marking floor Vinyl, Epoxy, and Laminate Floor covering.

Heavy Duty Power Towing Castors 2 Swivel 2 Directional Lock is designed for towing up to 4 bins and also comes standard with heavy duty base, including bolt-on towing hitch and eye. 200 mm Heavy duty High-Speed Directional Towing Castors Elastic or polyurethane tyres, Ball race bearings, Leading brakes, Cast hubs, 5mm top plate, Zinc and gold passivate, 3000 Kgs static load rating, 1500kgs dynamic load rating.

Bin Towing Containers provide a safe, practical answer to all towing requirements. Any container to be towed should be fitted with heavy-duty Power Towing castors or two swivel castors complete with directional locks, at one end of the container no more than 4 containers are towed at any one time.

Don't hesitate to get in touch with us on 01709 730341 if you need more information on “Towing Guidelines” or Castor Options and technical advice

Advantages Powder Coating: Taylor Bin

The container 770L can be a powder-coated option using polyester powder, which is baked and cured in a controlled oven process Providing a layer of protection against corrosion, scratches/chipping and fading,

DuraFlex Trade and Recycling Lids are impervious to water and climatic influences. They are maintenance-free and fundamentally easier to replace when damaged. A rotomoulded DuraFlex lid can be bent or crushed several times and still revert to its original shape Duraflex Trade Lid 7 Ribs For Optional Strength Rotationally moulded from UV - stabilized LMDPE; double-skinned walled;100% recyclable.
Lids are impervious to water and climatic influences. They are maintenance-free and fundamentally easier to replace when damaged. A rotomoulded DuraFlex bin container lids can be bent or crushed several times and still revert to its original shape.
Choice 3 Bin Lid options, Flat Lid, High Dome Recycling Flap Lid and 2 Aperture High Dome Bottle Brush Lid, Available in 12 Standard Colours.
Also available with 3 lid lock options: Standard V Lock, Push Lid T Lock and Forest Lock
The Bin Lids, are up to 4 times lighter than metal lids, thereby considerably reducing the risk of accidents to waste operatives and members of the public

770L Trade Lid

Duraflex Flat Trade Lid Suitable For Trade Waste, General Waste, Household Domestic Waste, Social Housing, Flats, Housing Associations, Shops, Department Stores, Industrial Waste, None Recyclable Waste Materials, Black Bag Waste. Yellow Bagged Waste, Bagged Kitchen Bagged Waste,

770L High Dome Recycling Flap Lid

The Recycling Flap is Designed for Recycling: Paper or Plastics Recycling. The flap-opening lid is available in a wide choice of colours from our range. Fitted with Flap Lid-Suitable for Recycling: Mixed Dry Recyclables Paper recycling - dry paper waste, newspapers, office paper and magazines. Cardboard  corrugated cardboard, cereal boxes and card, Metal cans  clean, empty drinks cans and food tins Plastic – packaging films, empty drinks bottles, rinsed out milk bottles, clean salad trays, rinsed out microwaveable meal trays, margarine  tubs, glass jars, glass bottles NOT FOOD WASTE or None Recyclables Materials, Single-use Plastics,

770L High Dome Bottle Recycling 2 Aperture Bush Lid

Fitted With High Dome 2 Aperture Brush Lid
Suitable For, Glass Bottles, Plastic Bottles, Hospitality, Pubs, Hotels, Car Parks Restraints, Public Events, Local Authorities

Lid Colour Options

Dimensions Mk2 770 Litre Standard Build Bin
