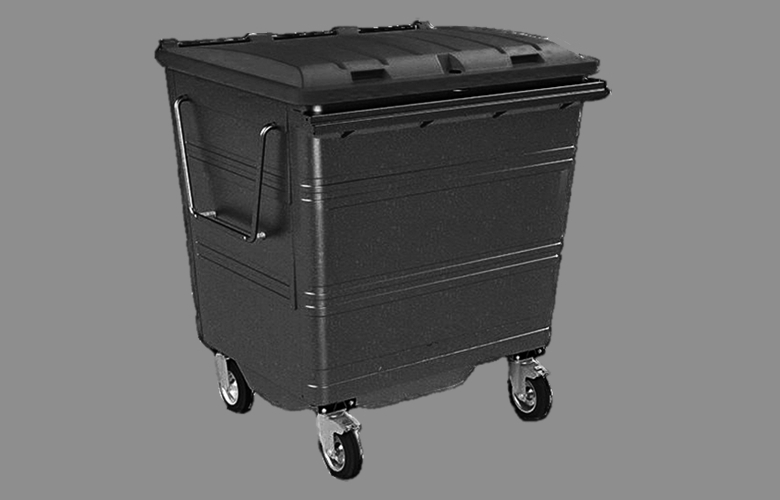

Stylish and easy to use, this 4-wheeled bin can be configured to your most exacting requirements, on even the most demanding waste collection rounds. Taylor Mk4 1100-litre steel bin is stylish and easy to use, this four-wheeled bin can be configured to your most exacting requirements, on even the most demanding collection rounds.
With full EN840 certification, the Continental 1100 will give you exceptional lifetime value with limited downtime, unlike plastic and other alternative steel commercial trade bins. Quality manufacture means Continental bins keep working, even under the toughest conditions. Internally welded seams stop water penetration, preventing the corrosion that plagues less well-made metal waste containers. From DIN to Danish Handles, to Lid Locks and corporate livery, the Continental 1100 is the most adaptable commercial
waste bin around.
The Taylor 1100 Mk4 bins Bin offers several newly incorporated features that make it the most robust standard specification bin on the market. Has been designed to fully integrate with CCE’s world-famous DuraFlex Lid range of trade waste and recycling lids, giving customers an unbeatable combination of durability and operational flexibility
The Taylor 1100 Mk4 newly designed lifting comb is manufactured from 2.0mm** thick galvanised steel and features 7 gussets for additional strength. CCE’s unrivalled expertise in waste container applications is reflected in our standard product specification. Danish handles, CCE’s in-house designed hinge and bracket set, our patented lock and EN840 castors (2 swivels, 2 brakes) are all included in the basic container price,
The 1100 Mk4 bin offers the highest standard product specification available on the UK market. The bin features 1.7mm* thick galvanised steel body, fully internally seam welded to prevent liquid ingress and rusting. The base features 2.0mm** thick galvanised steel, 20% more than the standard specification of other brands of bins, to prolong container life and avoid unwanted refurbishment costs.
The Taylor 1100 Mk4 newly designed lifting comb is manufactured from 2.0mm** thick galvanised steel and features 7 gussets for additional strength. CCE’s unrivalled expertise in waste container applications is reflected in our standard product specification. Danish handles, CCE’s in-house designed hinge and bracket set, our patented lock and EN840 castors (2 swivel, 2 brakes) are all included in the basic container price.
• EN840 compliant • Conforms to EN ISO 3744 Noise Emission Standards • Hot dip galvanized to EN ISO 1461 • 2.0mm** thick galvanised steel, reinforced lifting comb bar with 7 gussets for additional strength and 5mm thick end plates making this ultra-strong • Extra strong 2.0mm** thick galvanised steel base with strengthening ribs in sump provides rigidity and assists in water drainage to optimise container life • 1.7mm* thick galvanised steel body with fully internally welded seams to prevent water ingress • CCE Drain plug supplied as standard • Drain plug hole situated at front for ease of access
Benefits Taylor 1100 Mk4 Bin
Reinforced corner buffer plates welded internally • EN 840 castors (2x swivel + 2x brake) PAH compliant • 4.0mm thick tamper-proof hinge brackets supplied as standard • Galvanised hinge bar and end plugs to prevent rusting and alleviate water ingress supplied as standard • Danish handles supplied as standard for optimal ergonomic benefit to users • CCE patented lock supplied as standard • World-renowned double-skinned DuraFlex trade waste and recycling lid options available for all containers • Identification numbers on all containers/ date/traceability: BS ISO 11469
Din points/ trunnions • A wide range of locking options available as alternatives to the standard patented CCE lock: spine lock (also known as new forest lock and security post), lever lock, and patented DuraFlex Press2lock • Custom embossing subject to quantities • Secure RFID mounting in underside of lifting comb • Resilient powder coating finish available in a wide range of standard colours • Vinyl graphics can include safety operating instructions • Drop Front Panel can only be used for manual emptying
All four castors are either 200mm Steel centred wheels manufactured with needle bearings, grease and rubber optimised for performance steel-centred rubber-tyred swivel castors, two of which are fitted with trailing brakes (Brakes are press to lock, press to release) are bolted on for an easy replacement. Two-foot operated, trailing braking wheels at the front with two swivel wheels at the back. (Not Welded On or Plastic Centred Castors)
Also available with Castors Options
Continental Towing containers are fully adapted and built with a heavy-duty reinforced base and heavy-duty Power castors and removable tow link system allowing up to 4 wheeled containers to be moved at a time subject to bin size and materials, ground conditions and material weights.
Bin Towing Containers provide a safe, practical answer to all towing requirements. Any container to be towed should be fitted with heavy-duty Power Towing castors or two swivel castors complete with directional locks, at one end of the container and no more than four containers are towed at any one time.
Please note we would not recommend using standard castors for towing up to 4 bins
Advantages Powder Coating: Taylor Continental Bin,
Taylor, 4 Wheel Metal Bins.Taylor is fully EN840 compliant, The powder-coated body means it has higher resistance against scuffs, scratches, corrosion and colour discolouration/fading.
Available In 12 Standard Colours
DuraFlex lids are up to 4 times lighter than metal lids, thereby considerably reducing the risk of accidents to waste operatives and members of the public.
DuraFlex lids are impervious to water and climatic influences. They are maintenance-free and fundamentally easier to replace when damaged.
Available in 12 Standard Colours
1100 Standard Trade Lid
.png)
Dimensions Duraflex Taylor MA4937 1100 Litre Trade Waste Lid 4 Wheel Bin Container lid Flat lid to fit Taylor,1100 . L: 932mm x W: 1239mm x H: 86mm With : 7 Ribs For Optimal Strength
1100 Flap Lid
Dimensions Duraflex Taylor: ML1100RM-FLA 1100 Litre Recycling lid with plastic flap To fit Taylor, 1100 litre containers L: 934mm x W: 1240mm x H: 164mm Plastic Flap Aperture Size: W:500mm H:150mm: High Dome and Deep Ribbing Provides Exceptional Strength
The Recycling Flap Lid is Designed for paper or plastics recycling. The flap-opening lid is available in a wide choice of colours from our range. Fitted with Flap Lid-Suitable for Recycling: Mixed Dry Recyclables Paper recycling - dry paper waste, newspapers, office paper and magazines. Cardboard corrugated cardboard, cereal boxes and card, Metal cans clean, empty drinks cans and food tins Plastic – packaging films, empty drinks bottles, rinsed out milk bottles, clean salad trays, rinsed out microwaveable meal trays, margarine tubs, glass jars, glass bottles NOT FOOD WASTE or None Recyclables Materials and Single-use plastics,
1100 Brush Lid.png)
Dimensions Duraflex Taylor: ML1100RM-BSA 1100 Litre Recycling lid with Brushes To fit Taylor, L: 934mm x W:1240mm H: 164mm x 2 175mm Brush Diameter: High Dome and Deep Ribbing Provides Exceptional Strength
Lid in Lid Flap opening 710mm / 72cm x 380mm / 38cm. The lid flap is easier to open as the flap is lighter. Located at the front of the bin, consumers do not have to reach to open the lid flap
Bespoke Logos Can Be Applied To Any Bin showing what can be correctly recycled
.png)
For Further Information on the 1100 Litre General Waste Bin: Please Phone DJE On: 01709-730341 Or Via the Contact Form
Standard Build Compliances
- Comb lifting bar (Frontal receiver) to meet EN840-2 regulation
- Simple, robust steel hinge bar secured by a split pin
- The double-skinned rotationally moulded lid is both durable and UV resistant. Available in a choice of colours
- The lid recovers even from extensive deformation unlike injection moulded plastic lids
- The design avoids water draining into the bin, unlike some alternatives
- Handles designed to EN 840 for ergonomic handling and health & safety by keeping hands away from lifting gear
- The continental bins comply with EN840 standard whereas flat-based bins fall short of this compliancy
- Standard Build Compliances
- Double tank method as dictated by European Standard BS EN 840
- Quality Control Certification to BS EN ISO 9001:2000
- Bin comply in full with European Standard BS EN 840
- Certification to Environmental Standard BS EN ISO 14001
- Recycling bins comply in full with ‘The Noise and Emission in the Environment by Equipment for use Outdoors Regulation 2001’. BSENISO3744:1985
- Hot-dip galvanised to meet BS EN 1461: 2009
- Bin body steel, all joints fully welded with all internal body seams continuously welded. All steel parts are galvanised after manufacture to meet BS 729.
- Galvanised steel body with internal fully welded seams
- Castors Compliant with EN840
- The patented top frame is an unbroken pressed steel tube designed to give maximum rigidity to the container during lifts for a longer life span.
- The patented comb bar is Rolled section tube with a step profile to ensure maximum rigidity and safe and efficient fit on vehicle lifts. The lifting bar must integrate with all refuse collection vehicles meeting the specification in the European Standard EN 15.
