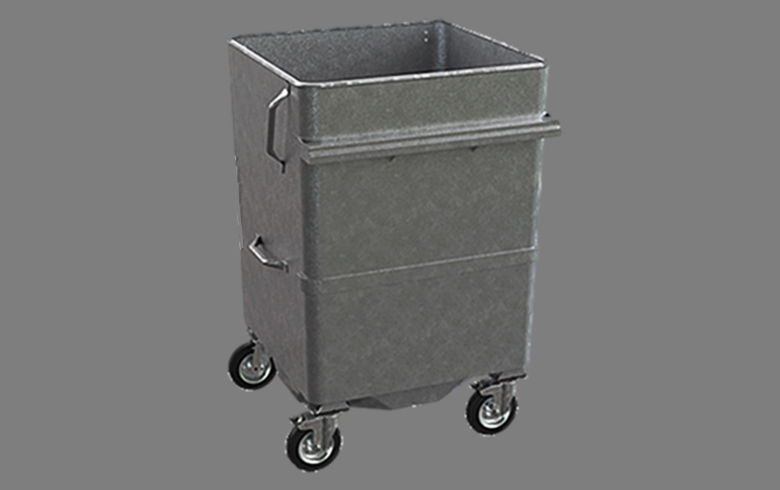

CHAMBERLAIN 940L BIN

Chamberlain Bins Specifically designed a 4-wheeled bin for the collection of waste generated in high-rise domestic housing available as 940L. This unique product solves the problem of waste overspill in domestic chutes by fitting perfectly into housings and with the option of recessed handles they are able to fit into even the tightest of spaces while the rigid steel construction helps this waste container contains a fire providing added protection to residents and their property.

Chamberlain wheeled container, is a safe, stable, and durable waste container designed for the collection and storage of waste generated in high-rise domestic housing.

The Chamberlain solves the problem of waste overspill in domestic chutes by fitting perfectly into housings without creating side gaps.

Suitable for a number of locations including high-rise housing, shops, supermarkets, hotels, schools, Universities, and colleges.

Chamberlain Bins are manufactured with a Steel Bin Hot-Dipped Galvanised Steel body along with internally welded seams, ensuring robust protection in the harshest of environments and protecting the container from internal corrosion due to residual waste being caught in exposed corners.

Features:

2mm thick steel body panels.

All inside surfaces of the container body are flat to ensure ease of emptying the container.

The base features steel pressing flanged all around 20mm deep and is complete with a 150mm deep slump.

The base has a drain hole with a twist/turn bung.

Rolled section tube lifting bar with step profile to ensure safe and efficient fit on vehicle lifts.

The castor brackets are 4mm thick pressed steel to a minimum overall height of 30mm welded to the pressed base.

Features 4 handles to assist in maneuvering and lifting the container.

All internal joints are to be fully welded with all internal seems continuously welded.

The container is fully hot dip galvanised after manufacture to BS EN ISO 1461:1999 regulations.

Features 4x 200mm swivel castors with steel centers and rubber tyres with roller-bearing axles.

Steel-centered castor wheels manufactured with needle bearings, grease, and rubber optimised for performance (we don’t offer plastic-centered castors)

200 mm Standard castors Rubber tyres, Needle roller bearings, Trailing brakes, Pressed hubs, 3.5mm top plate, Zinc and clear passivate, 1230 Kgs static load rating, 690 Kgs dynamic load rating.

Footbrakes are fitted to the 2 front wheels and are press on/press off action.

Chamberlain Bin 940L Dimensions

Bin Compliances:

• Double tank method as dictated by European Standard BS EN 840
• Quality Control Certification to BS EN ISO 9001:2000
• Bin comply in full with European Standard BS EN 840
• Certification to Environmental Standard BS EN ISO 14001
• Recycling bins comply in full with ‘The Noise and Emission in the Environment by Equipment for Use Outdoors Regulation 2001’. BSENISO3744:1985
• Hot-dip galvanised to meet BS EN 1461: 2009
• Bin body steel, all joints fully welded with all internal body seams continuously welded. All steel parts are galvanised after manufacture to meet BS 729.
• Galvanised steel body with internal fully welded seams
• Castors Compliant with EN840
