Taylor Mk4 1100L is used by UK local authorities, Recycling Businesses and housing associations. The Taylor 1100 litre is the undisputed benchmark for waste and recycling containers. Compliant with EN840, giving customers confidence in both product quality and safety. 15 build variants, please link to the images below showing full bin specifications.

Standard Build: 1100 Litres Galvanised. Steel General Waste Recycling Bin With Internally Welded Seams, Welded On Comb Bar, Danish Side Handles. EN840 compliant, internally seam-welded Hot dip galvanised body welded comb bar, X 4 200mm Steel Centred Bolt castors For Easy Replacement, X 2 Foot foot-operated standard Braked Castors, X 2 Swivel Rear Castors Fitted with Black Duraflex Back Trade Lid, Lock and Base Drain Plug. Prices from: £362.00 Excluding VAT. (12 Month Warranty) Delivery Time 2-4  Working Weeks From Dispatch

Standard Build Options and Bin Finishes:
Heavy Duty X 4 200mm Steel Centred Bolt On Castors For Easy Replacement, X 2 Foot Operated Braked Castors X 2 Swivel Rear Castors Options: Side loading DIN points, Powder coated body 12 colour options (See Colour Chart )
5 Lid types & apertures,  Duraflex Black Trade Lid, High Dome 2 Aperture Bottle Recycling Lid, High Dome Recycling Flap Lid:  Lid Within Lid, Foot Operated Duraflex Lid, Drain plug varieties Standard Lid Drain Plug, (Rodent Replant Drain Pug) Powder coated body colour options (See Colour Chart), Standard vinyl graphics, Custom embossing External fork pockets X4 200mm or Heavy Duty High Speed 200mm Heavy Duty Directional towing castors, Towing Eye Towing Hitch, Bespoke vinyl graphics, Hinged Drop Front Panel Suitable For Materials Storage. Hinged Drop Back suitable for General Waste.

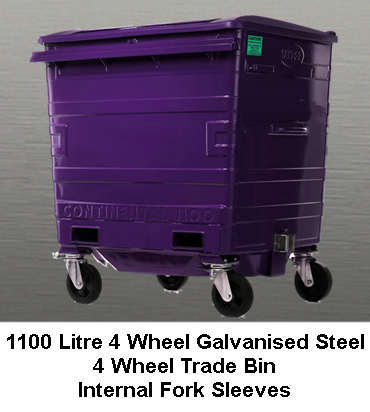

External Fork Sleeves and Internal Fork Sleeves are Suitable For Rotating The bin 360 Degrees.

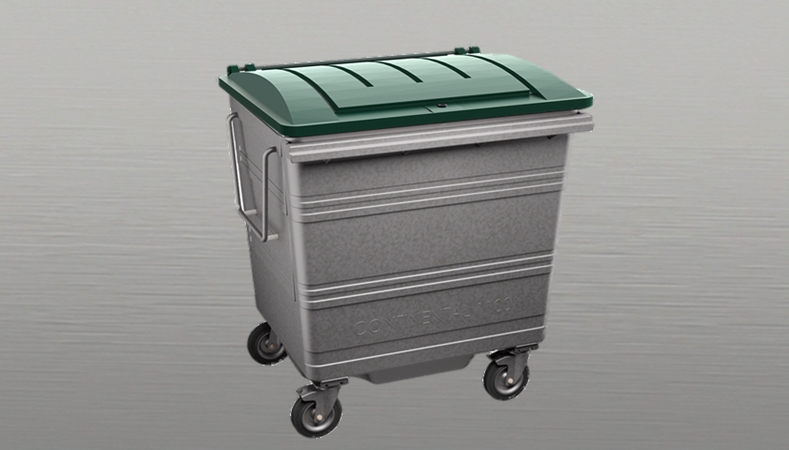

Image Mk4 1100 For Guild Line Purposes
Galvanised Steel Shell
Seam Welded Internally
Height 1362mm
Depth 1000mm
Width 1260mm
S.W.L 440Kg
Fitted with Danish Handles
Welded Comb Bar
Standard Drain Plug
X4 Steel Centred 200mm Castors
2 Rear Swivel Castors: 2  Front Foot Operated Locking Castors
5 Build Options

Mk4 Drop Front and Drop Back containers have been created to help avoid the health and safety risks associated with handballing bagged or bulky waste, which is often an important requirement within retail and manufacturing environments, and are easy to empty. Please note that the drop front panel bin isn’t fitted with a comb but can be fitted with weld-on DIN lift points.

All four castors are 200mm steel-centred wheels manufactured with needle bearings, grease, and rubber optimised for performance steel-centred rubber-tyred swivel castors, two of which are fitted with trailing brakes (Brakes are press to lock, press to release) and are bolted on for easy replacement. Two-foot operated, trailing braking wheels at the front with two swivel wheels at the back. (Not Welded On or Plastic Centred Castors) 200 mm Standard castors, Rubber tyres, Needle roller bearings, Trailing brakes, Pressed hubs, 3.5mm top plate, Zinc and clear passivate, 1230 Kgs static load rating, 690 Kgs dynamic load rating.

Caster Options: Heavy Duty 200mm Casters: These are mainly used with bins fitted with a heavy-duty base, suitable for dense waste materials (Food waste) and loading waste compactors and bins fitted with external and internal fork pockets.200 mm Heavy-duty Elastic or polyurethane tyres, Ball race bearings, leading brakes, Cast hubs, 5mm top plate, Zinc and gold passivate, 3000 Kg static load rating, 1500 kg dynamic load rating.

Non-marking castors are mainly used by Airports, hotel lobbies, Schools, Hospitals, Offices, and Shopping Centres, which have non-marking floor Vinyl, Epoxy, and Laminate Floor covering.

Heavy Duty Power Towing Castors 2 Swivel 2 Directional Lock is designed for towing up to 4 bins and also comes standard with a heavy-duty base, including a bolt-on towing hitch and eye. 200 mm Heavy duty High-Speed Directional Towing Castors Elastic or polyurethane tyres, Ball race bearings, Leading brakes, Cast hubs, 5mm top plate, Zinc and gold passivate, 3000 Kgs static load rating, 1500kgs dynamic load rating.

Bin Towing Containers provide a safe, practical answer to all towing requirements. Any container to be towed should be fitted with heavy-duty Power Towing castors or two swivel castors complete with directional locks, at one end of the container, and no more than 4 containers are towed at any one time.

Please get in touch with us on 01709 730341 if you need more information on “Towing Guidelines” or Castor Options and technical advice

Advantages of Powder Coating: Taylor Bin

The Mk4 1100L can be a powder-coated option using polyester powder, which is baked and cured in a controlled oven process, providing a layer of protection against corrosion, scratches/chipping and fading.
