The Taylor 500-litre Galvanised Steel Shell, which is the smallest in the range, is ideal for both your indoor and outdoor waste storage needs, with the ability to fit through a standard-sized doorway due to its small footprint and compact design. Compliant with EN840, giving customers confidence in both product quality and safety. 4 Standard Build Options

Standard Build: 500 Litres Galvanised. Steel General Waste Bin With Internally Welded Seams, Welded On Comb Bar, EN840 compliant, Internally seam welded Hot dip galvanised steel body Welded comb bar, X 4 160mm Steel Centred Bolt On Castors For Easy Replacement, X 2 Foot Operated Standard Side Braked Castors, X 2 Swivel Rear Castors Fitted with Black Duraflex Back Trade Lid, Lock and Base Drain Plug. Prices from: £450.00 Excluding VAT. 500 L will fit through any standard-width doorway. (12 Month Warranty) Delivery Time 2-4  Working Weeks From Dispatch

Standard Build Options and Bin Finishes:
X 4 200mm Steel Centred Bolt On Castors For Easy Replacement, X 2 Foot Operated Braked Castors X 2 Swivel Rear Castors Options: Side loading DIN points, Powder coated body 12 colour options (See Colour Chart )
4 Lid types & apertures,  Duraflex Black Trade Lid, High Dome 2 Aperture Bottle Recycling Lid, High dome Recycling Flap Lid,  Foot Operated Lid:   Drain plug varieties Standard Lid Drain Plug, (Rodent Replant Drain Pug) Powder coated body colour options (See Colour Chart), Standard vinyl graphics, BESPOKE Options: Heavy duty version ( Suitable For Food Waste Recycling, Custom embossing External fork pockets X4 200mm or Heavy Duty High Speed 160mm or 200mm  Directional towing castors, Towing Eye Towing Hitch, Bespoke vinyl graphics, Hands Free Foot Operated Duraflex Back Lid Opening.



Taylor 500L: 500 Litre Capacity Trade Bin, Galvanised Steel Shell, Internally seams welded, lifting comb is manufactured from 2.0mm** thick galvanised steel and features 7 gussets for additional strength. DuraFlex Trade Lid is manufactured from high-grade UV-stabilised Polyethylene. Taylor 200mm Steel Centred castors, 2x Back / Rear swivel Castors, 2 x foot operated braked castors, foot operated, Standard Side Handles

The Taylor 500-litre Galvanised Steel Shell, the smallest in the range, is ideal for both indoor and outdoor waste storage needs, thanks to its compact design and small footprint, which allows it to fit through a standard-sized doorway. Compliant with EN840, giving customers confidence in both product quality and safety, 4 Standard Build Options.

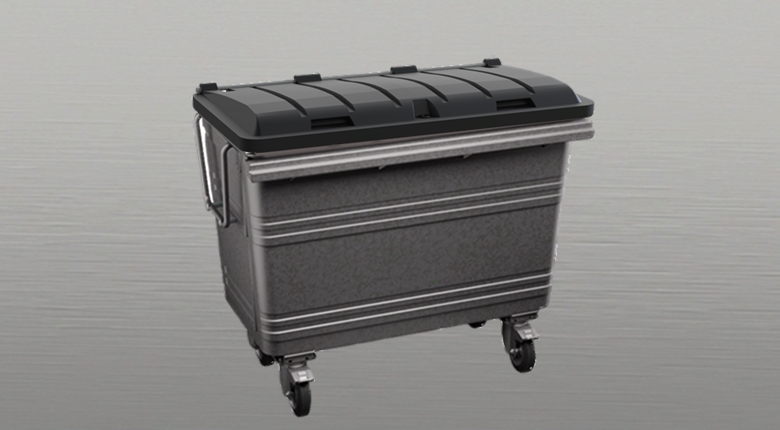

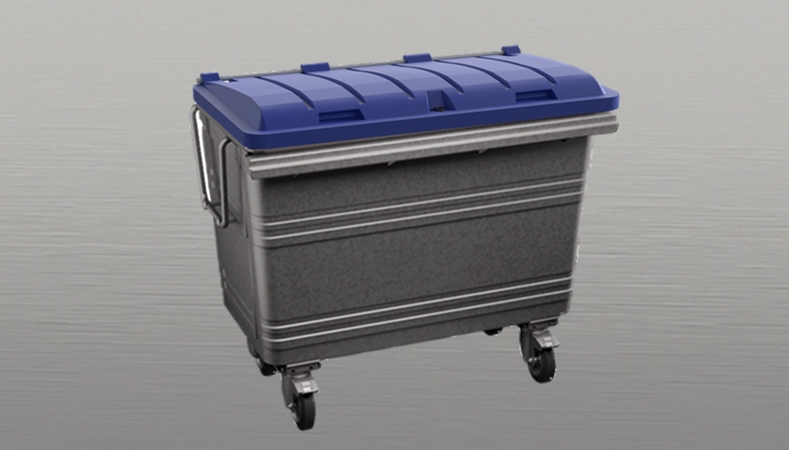

The Taylor Continental 500L  Trade Waste Bin is the smallest in the range, is ideal for indoor and outdoor waste storage needs, and can fit through a standard-sized doorway due to its small footprint and compact design.

Available in 5 Standard Build Options, all images are linked, showing the 500L Build Specification.

Image 500L For Guild Line Purposes
Galvanised Steel Shell
Seam Welded Internally
Height 1095mm
Depth 720mm
Width 1290mm
S.W.L 200Kg
Standard Handles
Welded Comb Bar
Standard Drain Plug
X4 Steel Centred 160mm Castors with the option of 200mm Castors
2 Rear Swivel Castors: 2 Front Foot Operated Locking Castors
3 Duraflex Lid Options
See Drawing At the Bottom Of the Page

 500 Continental Galvanised Steel with internally welded seams ensures robust protection in the harshest of environments and protects the container from internal corrosion due to residual waste being caught in exposed corners. Internally welded seams stop water penetration.

Highly Durable Galvanised Steel Shell

Steel-centred castor wheels manufactured with needle bearings, grease, and rubber optimised for performance (we don’t offer plastic-centred castors)

Fully internally welded seams prevent internal corrosion, whilst the hard-wearing galvanised steel body and base make for a durable, long-lasting container that delivers exceptional lifetime value.

The top frame is a complete welded tube, not split or open-bend, with a diameter of 20mm. The complete welded tube is essential here, as by using a complete tube, there are no holes or gaps in which waste can leak into the top frame itself when the container is lifted on emptying.

The Comb Bar is manufactured from a single piece of steel with welded end pieces and gussets.

500 Litre trade waste steel body, Hot-Dipped Galvanised Steel, along with internally welded seams, ensures robust protection in the harshest of environments and protects the container from internal corrosion due to residual waste being caught in exposed corners.

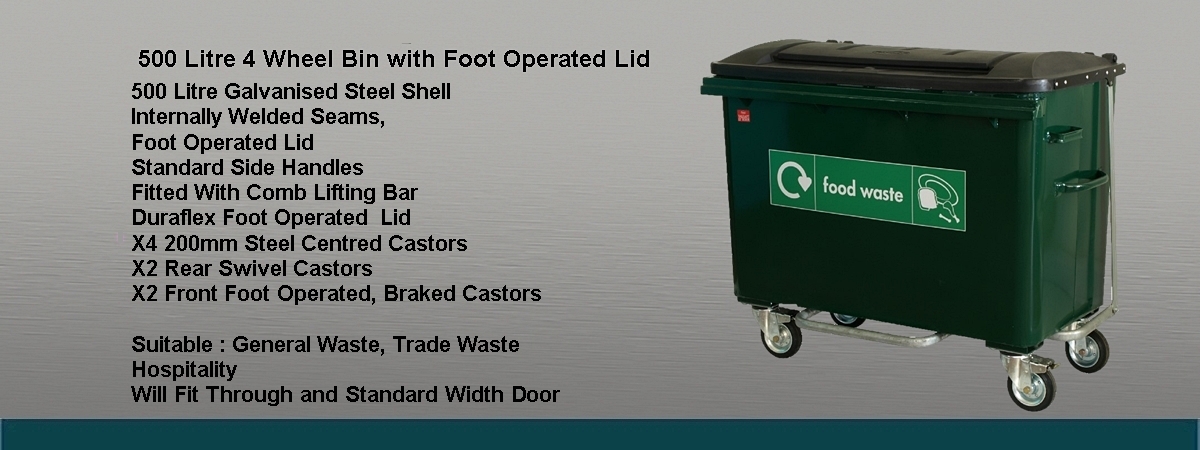

Foot-Operated Bin Lid Opening


500L is available with a foot-operated Standard Lid specifically adapted for situations in which bulky items can limit the use of both hands for opening the lid; the foot-operated system is perfect for black-bagged waste, general waste. This simple operation, yet effective, foot-operated pedal bin system at the base of the container takes the slightest effort to raise the lid, freeing up your arms and reducing the risk of injury if carrying awkward loads and boxes. Ideal for bin stores and bin sheds.

All four castors are 160mm steel-centred wheels manufactured with needle bearings, grease, and rubber optimised for performance steel-centred rubber-tyred swivel castors, two of which are fitted with trailing brakes (Brakes are press to lock, press to release) and are bolted on for easy replacement. Two-foot operated, trailing braking wheels at the front with two swivel wheels at the back. (Not Welded On or Plastic Centred Castors) 200 mm Standard castors, Rubber tyres, Needle roller bearings, Trailing brakes, Pressed hubs, 3.5mm top plate, Zinc and clear passivate, 1230 Kgs static load rating, 690 Kgs dynamic load rating.

4 Wheel Caster Options:

Heavy Duty 160mm Casters: Mainly used with bins fitted with a heavy-duty base, suitable for dense waste materials (Food Waste) and also for loading waste compactors and bins fitted with External and Internal fork pockets.200 mm Heavy duty Elastic or polyurethane tyres, Ball race bearings, Leading brakes, Cast hubs, 5mm top plate, Zinc and gold passivate, 3000 Kg static load rating, 1500 kg dynamic load rating.

Non-marking castors are mainly used by Airports and Hotel lobbies, Schools, Hospitals, Offices, and Shopping Centres, which have non-marking floor Vinyl, Epoxy, and Laminate Floor covering.

Heavy Duty Power Towing Castors 2 Swivel 2 Directional Lock is designed for towing up to 4 bins and also comes standard with a heavy-duty base, including a bolt-on towing hitch and eye. 200 mm Heavy duty High-Speed Directional Towing Castors Elastic or polyurethane tyres, Ball race bearings, Leading brakes, Cast hubs, 5mm top plate, Zinc and gold passivate, 3000 Kgs static load rating, 1500kgs dynamic load rating.

Bin Towing Containers provide a safe, practical answer to all towing requirements. Any container that is to be towed should be fitted with heavy-duty Power Towing castors or two swivel castors complete with directional locks, at one end of the container, and no more than 4 containers are towed at any one time.

Please contact us on 01709 730341 if you need more information on “Towing Guidelines” or Castor Options and technical advice

Advantages of Powder Coating: Taylor Continental Bin
The container 500L can be a powder-coated option using polyester powder, which is baked and cured in a controlled oven process, providing a layer of protection against corrosion, scratches/chipping, and fading. Bin Colour Options:

500L Bin Specification and Build Finish Options

DuraFlex Trade and Recycling Lids are impervious to water and climatic influences. They are maintenance-free and fundamentally easier to replace when damaged. A rotomoulded DuraFlex lid can be bent or crushed several times and still revert to its original shape. Duraflex Trade Lid 7 Ribs For Optional Strength Rotationally moulded from UV-stabilised LMDPE; double-skinned walled;100% recyclable.
Lids are impervious to water and climatic influences. They are maintenance-free and fundamentally easier to replace when damaged. A rotomoulded DuraFlex bin container lid can be bent or crushed several times and still revert to its original shape.

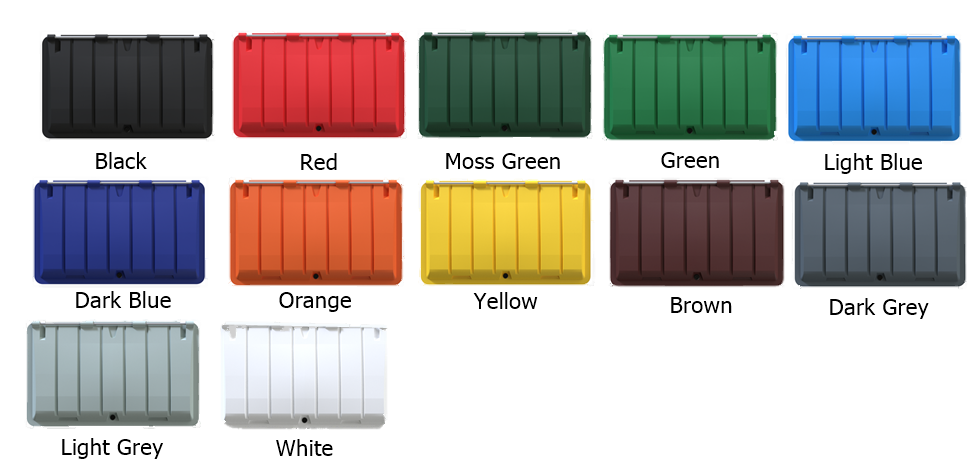

Choice 3 Bin Lid options, Flat Lid, High Dome Recycling Flap Lid and 2 Aperture High Dome Bottle Brush Lid, Available in 12 Standard Colours.
Also available with 3 lid lock options: Standard V Lock, Push Lid T Lock and Forest Lock
The Bin Lids are up to 4 times lighter than metal lids, thereby considerably reducing the risk of accidents to waste operatives and members of the public.

DURAFLEX TAYLOR LIDS DIMENSIONS

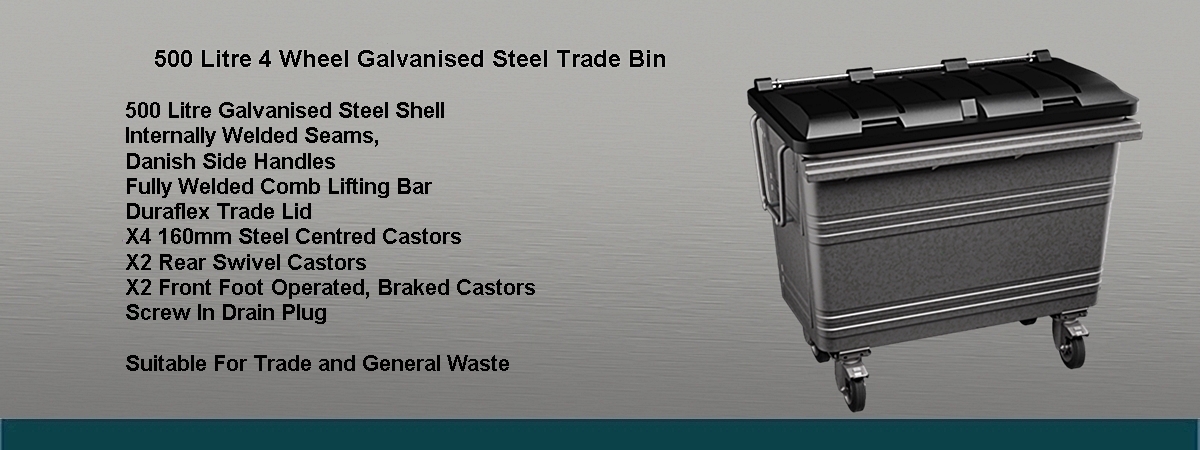

Taylor DuraFlex 500L Trade Lid

Dimension Duraflex Taylor - MA4927 Trade Waste 4 Wheel Bin Container lid Flat lid to fit Taylor 500 litre bins .L: 673mm x W: 1233mm x H: 81mm With: 7 Ribs For Optimal Strength

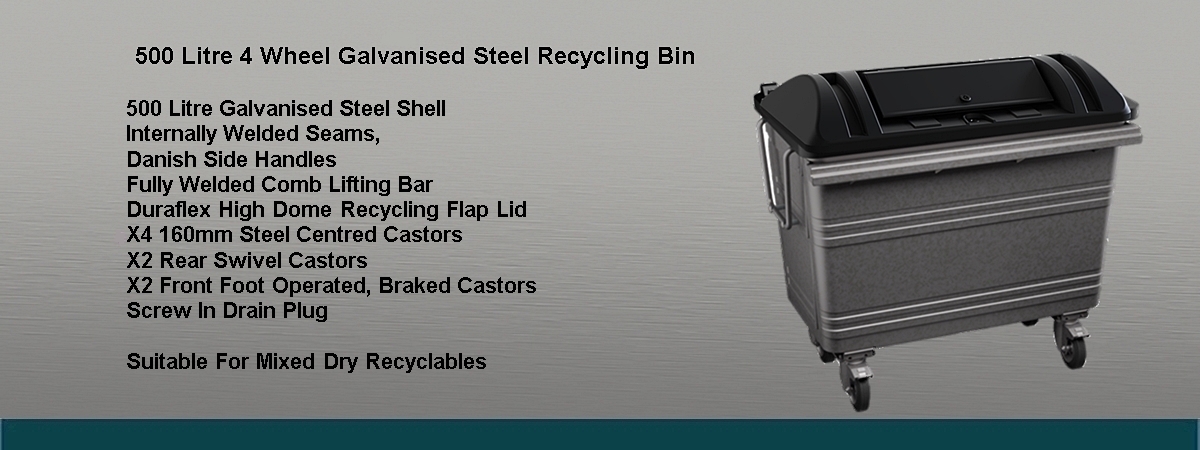

Taylor DuraFlex High Dome 500L  Recycling Flap Lid

Dimensions Duraflex Taylor: ML0660RM-FLA Recycling lid with plastic flap To fit Taylors 500 Ltr Bin Lid Container L: 671mm x W:1237mm x H:158mm Plastic Flap Aperture Size: W:500mm H:150mm: High Dome and Deep Ribbing Provides Exceptional Strength

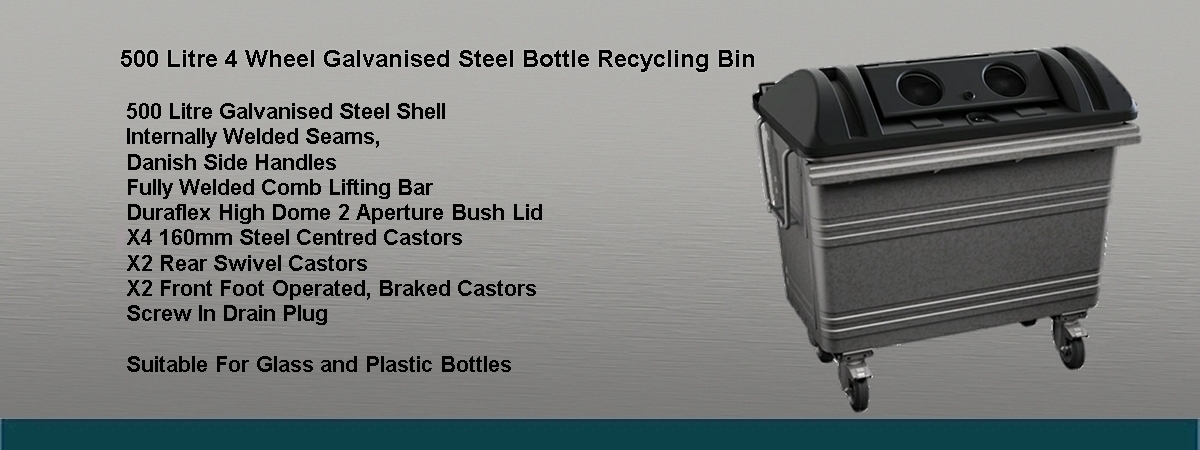

Taylor DuraFlex High Dome 500L 2 Aperture Bottle Recycling Brush Lid
Dimensions Duraflex Taylor: ML0660RM-BSA Recycling lid with brushes Taylor 500 Ltr 4 Wheel Bin  container L: 671mm x W: 1237mm H:158mm x 2 175mm Brush Diameter: High Dome and Deep Ribbing Provides Exceptional Strength

Build Options
DIN points, Custom embossing, Drain plug options, External fork pockets, Heavy Duty Base, Central locking castors,
For Further Information on the 500 Litre Trade Waste Bin: Please Phone DJE on 01709-730341 or Via the

Dimensions: 500 Litre Bin

 Continental 500L Standard Bin Dimensions
Maximum Payload SWL should not exceed 200 Kgs
