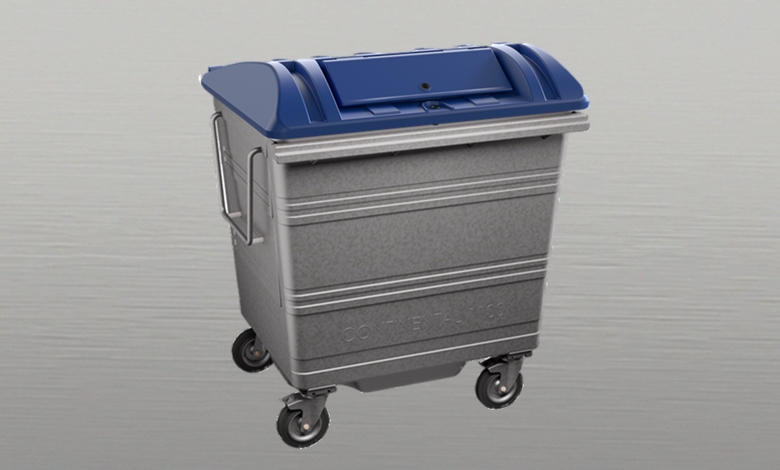

Taylor Mk4 1100L Recycling Bin, Galvanised Steel Shell, Internally seams welded. The comb lifting bar is manufactured from 2.0mm** thick galvanised steel and features 7 gussets for additional strength. DuraFlex High Dome Lid is manufactured from high-grade UV-stabilised polyethylene. With a Flap 500 X 150 mm Aperture, Taylor 200mm Steel Centred castors, 2x Back / Rear swivel Castors, 2 x Foot operated braked castors, Danish Side Handles for easy Manoeuvrability in confined bin storage areas.

Standard Build: MK4 1100 Litres Galvanised. Recycling Bin Fitted with High Dome Recycling Flap Lid Suitable For Recycling Paper and Plastics With Internally Welded Seams, Welded On Comb Bar, Danish Side Handles. EN840 compliant, internally seam-welded Hot dip galvanised body, Welded comb bar, X 4 200mm Steel Centred Bolt castors For Easy Replacement, X 2 Foot Operated Standard Side Braked Castors X 2 Swivel Rear Castors Fitted with Black Duraflex Back Trade Lid, Lock and Base Drain Plug. Prices from: £376.00 Excluding VAT. (12 Month Warranty) Delivery Time 2-4  Working Weeks


Standard Build Options and Bin Finishes:
X 4 200mm Steel Centred Bolt On Castors For Easy Replacement, X 2 Foot Operated Braked Castors X 2 Swivel Rear Castors Options: Side loading DIN points, Powder coated body 12 colour options (See Colour Chart )
3 Lid Options & apertures, Duraflex Black Trade Lid, High Dome 2 Aperture Bottle Recycling Lid, High dome Recycling Flap Lid: Drain plug varieties Standard Lid Drain Plug, (Rodent Replant Drain Pug) Powder coated body colour options (See Colour Chart), Standard vinyl graphics, Custom embossing External fork pockets X4 200mm or Heavy Duty High Speed 200mm Heavy Duty Directional towing castors, Towing Eye Towing Hitch, Bespoke vinyl graphics, Hinged Drop Front Panel Suitable For Materials Storage. Hinged Drop-Back Panel Suitable for General Waste.

External Fork Sleeves, Internal Fork Sleeves, Suitable For Rotating the bin 360 Degrees



Images Mk4 1100 Recycling Bins for Guild Line Purposes
Galvanised Steel Shell
Seam Welded Internally
Height 1392mm
Depth 1000mm
Width 1260mm
S.W.L 440Kg
Fitted with Danish Handles
Welded Comb Bar
Standard Drain Plug
X4 Steel Centred 200mm Castors
2 Rear Swivel Castors: 2  Front Foot Operated Locking Castors
Duraflex Recycling Flap
See Drawing At the Bottom Of the Page

• 1100L Galvanised Steel Body, hot-dipped galvanised steel along with fully internally welded seams, ensures robust protection in the harshest of environments and protects the container from internal corrosion due to residual waste being caught in exposed corners.
• The container can be powder-coated option using polyester powder, which is baked and cured in a controlled oven process, providing a layer of protection against corrosion, scratches/chipping and fading, being one of the longest-lasting, superior paint finishes, and colour-durable quality available in 12 standard colours
• The Comb Bar is manufactured from a single piece of steel with welded end pieces and gussets.
• The top frame is a complete welded tube, not split or open bend, with a diameter of 20mm. The use of the complete welded tube is very important here, as by using a complete tube there are no holes or gaps in which waste can leak into the top frame itself when the container is lifted on emptying
• Container Bin Lids are Rotary-moulded double-skin plastic with a minimum weight of 5.0 kilo manufactured in an aluminium mould for a superior finish with 12 Standard Colour Options.
• Container Bin Lid Options
• Standard Trade Lid

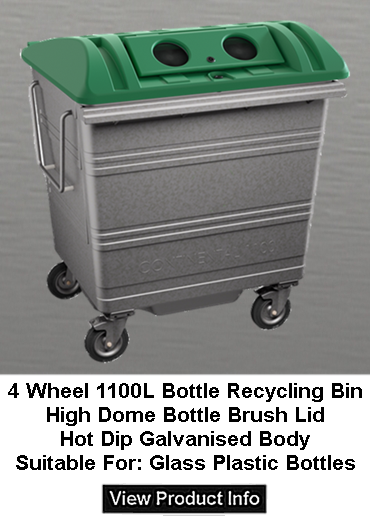

• 2 Aperture Bottle Brush Lid
• Recycling Flap Lid
• Bolt on Castor Options for easy replacement
• Standard 200mm Steel Centred Castors
• Heavy Duty 200m Castors
• 200mm High Speed Towing Castors
• None Marking 200mm Castors

All four castors are 200mm steel-centred wheels manufactured with needle bearings, grease and rubber optimised for performance steel-centred rubber-tyred swivel castors, two of which are fitted with trailing brakes (Brakes are press to lock, press to release) and are bolted on for easy replacement. Two-foot operated, trailing braking wheels at the front with two swivel wheels at the back. (Not Welded On or Plastic Centred Castors)

Also available with Castors Options

Heavy Duty 200mm Casters: Mainly used with bins fitted with a heavy-duty base, suitable for dense waste materials (Food Waste) and also for loading waste compactors and bins fitted with External and Internal fork pockets.

Non-marking casters are mainly used by Airports and Hotel lobbies, Schools, Hospitals, Offices, and Shopping Centres, which have non-marking floor Vinyl, Epoxy, and Laminate Floor covering.

Continental Towing containers are fully adapted and built with a heavy-duty reinforced base and heavy-duty Power castors and a removable tow link system, allowing up to 4 wheeled containers to be moved at a time, subject to bin size and materials, ground conditions and material weights.

Heavy Duty Power Towing Castors  2 Swivel 2 Directional Lock is designed for towing up to 4 bins and also comes standard with a heavy-duty base, including a bolt-on towing hitch and eye.

Bin Towing Containers provide a safe, practical answer to all towing requirements. Any container which is to be towed should be fitted with heavy-duty Power Towing castors or two swivel castors complete with directional locks, at one end of the container, and no more than 4 containers should be towed at any one time.

Please contact us on 01709 730341 if you need more information on “Towing Guidelines” or Castor Options and technical advice.

The 1100L container can be a powder-coated option using polyester powder, which is baked and cured in a controlled oven process. Providing a layer of protection against corrosion, scratches/chipping, and fading, being one of the long-lasting superior paint finishes, and colour-durable quality finishes. Which is then baked on through the High-Temperature Conveyor Drying System.

The lid is Rotary-moulded double-skin plastic with a minimum weight of 5.0 kilograms manufactured in an aluminium mould for a superior finish with 12 Standard Colour Options.

Recycling Flap Lid

Dimensions Duraflex Taylor: ML1100RM-FLA 1100 Litre Recycling lid with plastic flap To fit Taylor, 1100 litre containers L: 934mm x W: 1240mm x H: 164mm Plastic Flap Aperture Size: W:500mm H:150mm: High Dome and Deep Ribbing Provides Exceptional Strength

It is designed for paper or plastics recycling. The flap-opening lid is available in a wide choice of colours.

Fitted with Flap Lid-Suitable for Recycling: Mixed Dry Recyclables Paper recycling - dry paper waste, newspapers, office paper and magazines. Cardboard  corrugated cardboard, cereal boxes and card, Metal cans  clean, empty drinks cans and food tins, Plastic – packaging films, empty drinks bottles, rinsed out milk bottles, clean salad trays, rinsed out microwaveable meal trays, margarine  tubs, glass jars, glass bottles NOT FOOD WASTE or None Recyclables Materials, Single-use Plastics,

High Dome Recycling Lid Colour Options

Bespoke Logos Can Be Applied To Any Bin, showing what can be correctly recycled
Effective use of a logo alongside an eye-catching paint scheme is a key aspect in the design of your bins and can convey a powerful brand image. Container Bin Use. Personalise your containers with a complete range of Wrap logos or by adding bespoke logos.

The Continental 1100 Litre Build and Finish Options

DIN Lift Points, Central Locking Castors, Internal Fork Pockets, External Fork Pockets, Bin Embossing,

Mk4 1100 Bin Dimensions

Compliances:

• Double tank method as dictated by European Standard BS EN 840
• Quality Control Certification to BS EN ISO 9001:2000
• Bin comply in full with European Standard BS EN 840
• Certification to Environmental Standard BS EN ISO 14001
• Recycling bins comply in full with ‘The Noise and Emission in the Environment by Equipment for Use Outdoors Regulation 2001’. BSENISO3744:1985
• Hot-dip galvanised to meet BS EN 1461: 2009
• Bin body steel, all joints fully welded with all internal body seams continuously welded. All steel parts are galvanised after manufacture to meet BS 729.
• Galvanised steel body with internal fully welded seams
