Taylor Mk2 770L: 770 Litre Trade General Waste Bin, Galvanised Steel Shell, Internally seams welded. The comb lifting bar is manufactured from 2.0mm** thick galvanised steel and features 7 gussets for additional strength. DuraFlex Lid: Manufactured from high-grade UV-stabilised polyethylene. With an option of Flap 500 X 150 mm Aperture, Taylor 200mm Steel Centred castors, 2x Back / Rear swivel Castors, 2 x Foot operated braked castors, Danish Side Handles for easy Manoeuvrability in confined bin storage areas

Standard Build: 770 Litres Galvanised. Recycling Bin Fitted with High Dome Recycling Flap Suitable for Recycling Paper and Plastics With Internally Welded Seams, Welded On Comb Bar, Danish Side Handles. EN840 compliant, internally seam-welded Hot dip galvanised body, Welded comb bar, X 4 200mm Steel Centred Bolt On Castors For Easy Replacement, X 2 Foot Operated Standard Side Braked Castors X 2 Swivel Rear Castors Fitted with Black Duraflex Back Trade Lid, Lock and Base Drain Plug. Prices from: £383.00 Excluding VAT. (12 Month Warranty) Delivery Time 2-4  Working Weeks From manufacture to delivery.

6 Standard Build Options and Bin Finishes:
Side loading DIN points, Powder coated body, 12 colour options (See Colour Chart )
3 Lid types & apertures, Duraflex Black Trade Lid,  High Dome 2 Aperture Bottle Recycling Lid,  High Dome Recycling Flap Lid: Drain plug varieties Standard Lid Drain Plug, (Rodent Replant Drain Pug) Powder coated body colour options (See Colour Chart), Standard vinyl graphics, 200 mm X4 Heavy Duty Castors 2 Front Foot Operated Castors 2 Rear Swivel Castors, Custom embossing External fork pockets X4 200mm or Heavy Duty High Speed 200mm  Directional towing castors, Towing Eye Towing Hitch, Bespoke vinyl graphics,  Hinged Drop Front Panel Suitable For Materials Storage. Hinged Drop Back Panel Suitable For General Waste.


EN840 compliant, Internally seam welded Hot dip galvanised body Welded comb bar, Side handles 20mm top frame X 4 Steel Centred 2x swivel castors & 2 x braked castor Options: Side loading DIN points, Powder coated body 12 colour options (See Colour Chart)Lid 3 types & apertures, Drain plug varieties Standard Lid Drain Plug, (Rodent Replant Drain Pug) 12 Powder coated body colour options (See Colour Chart), Standard vinyl graphics, BESPOKE Options: Custom embossing, 200mm Directional towing castors, Towing Eye Towing Hitch, Bespoke vinyl graphics, Drop Front Hinged Panel, Drop  Hinged Back Panel,

DuraFlex Trade and Recycling Lids are impervious to water and climatic influences. They are maintenance-free and fundamentally easier to replace when damaged. A rotomoulded DuraFlex lid can be bent or crushed several times and still revert to its original shape. Duraflex Trade Lid 7 Ribs For Optional Strength Rotationally moulded from UV-stabilised LMDPE; double-skinned walled;100% recyclable.
Lids are impervious to water and climatic influences. They are maintenance-free and fundamentally easier to replace when damaged. A rotomoulded DuraFlex bin container lid can be bent or crushed several times and still revert to its original shape.
Choice 3 Bin Lid options, Flat Lid, High Dome Recycling Flap Lid and 2 Aperture High Dome Bottle Brush Lid, Available in 12 Standard Colours.
Also available with 3 lid lock options: Standard V Lock, Push Lid T Lock and Forest Lock
The Bin Lids are up to 4 times lighter than metal lids, thereby considerably reducing the risk of accidents to waste operatives and members of the public.

Image MK2 770L For Guild Line Purposes
Galvanised Steel Shell
Seam Welded Internally
Height 1370mm
Depth 790mm
Width 1290mm
S.W.L 308Kg
Fitted with Danish Handles
Welded Comb Bar
Standard Drain Plug
X4 Steel Centred 200mm Castors
X2 Rear Swivel Castors
X2  Front Foot Operated Lock Castors
3 Duraflex Lid Options
See Drawing At the Bottom Of the Page

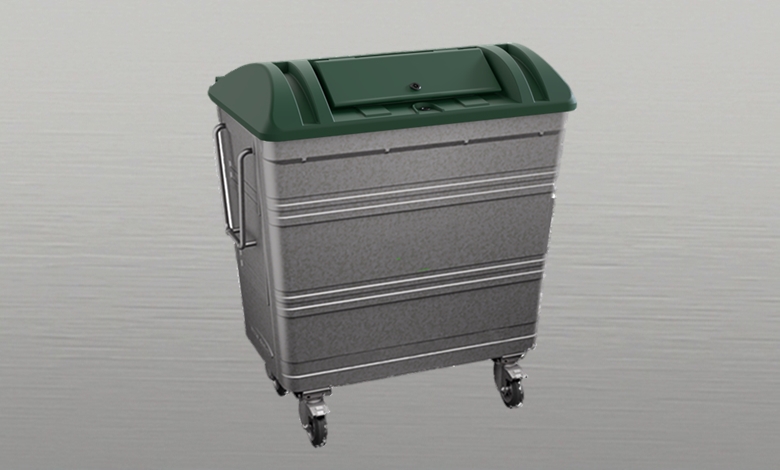

Standard Build: 770 Litres Galvanised. Recycling Bin Fitted with High Dome Recycling Flap Suitable for Recycling Paper and Plastics With Internally Welded Seams, Welded On Comb Bar, Danish Side Handles. EN840 compliant, internally seam-welded Hot dip galvanised body, Welded comb bar, X 4 200mm Steel Centred Bolt On Castors For Easy Replacement, X 2 Foot Operated Standard Side Braked Castors X 2 Swivel Rear Castors Fitted with Black Duraflex Back Trade Lid, Lock and Base Drain Plug. Prices from: £383.00 Excluding VAT. (12 Month Warranty)

Suitable For Mixed Dry Recyclables. Paper recycling - dry paper waste, newspapers, office paper and magazines. Cardboard  corrugated cardboard, cereal boxes and card, Metal cans  clean, empty drinks cans and food tins, Plastic – packaging films, empty drinks bottles, rinsed out milk bottles, clean salad trays, rinsed out microwaveable meal trays, margarine  tubs, glass jars, glass bottles NOT FOOD WASTE or None Recyclables Materials, Single-use Plastics,

The Taylor Mk2 770-litre 4-wheel metal recycling bin can be supplied with a Trade Lid or Recycling flap lid and offers the perfect medium-sized solution for your waste containment needs in a compact footprint where access may be an issue and space is limited.

Standard Build: 770 Litres Galvanised. Steel General Waste Bin With Internally Welded Seams, Welded On Comb Bar, Danish Side Handles. EN840 compliant, internally seam-welded Hot dip galvanised body, Welded comb bar, X 4 200mm Steel Centred Bolt On Castors For Easy Replacement, X 2 Foot Operated Standard Side Braked Castors X 2 Swivel Rear Castors Fitted with Black Duraflex Back Trade Lid, Lock and Base Drain Plug. Prices from: £368.00 Excluding VAT. (12 Month Warranty) Delivery Time 2-4  Working Weeks From Dispatch
Dimensions Duraflex Taylor-MA4929 Trade Waste 4 Wheel Bin Container lid Flat lid to fit Taylor 770 litre bin 770 litre bin. L: 737mm x W:1237mm x H: 81mm

Duraflex Flat Trade Lid Suitable For Trade Waste, General Waste, Household Domestic Waste, Social Housing, Flats, Housing Associations, Shops, Department Stores, Industrial Waste, Recyclable Waste Materials, Black Bag Waste. Yellow Bagged Waste, Bagged Kitchen Waste,

Dimensions Duraflex Taylor: ML0770RM-BSA Recycling lid with brushes To fit Taylor 770 Ltr containers L: 738mm x W:1239mm x H: 162mm x 2 175mm Brush Diameter

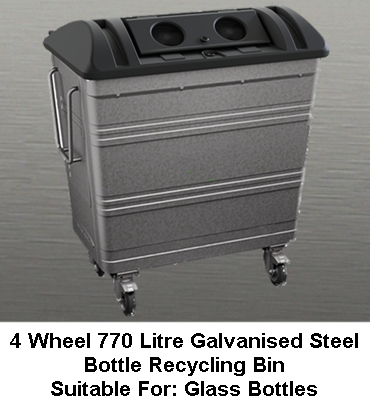

Fitted With a High Dome 2 Aperture Brush Lid, Suitable For Glass Bottles, Plastic Bottles, Hospitality, Pubs, Hotels, Car Parks, Restraints, Public Events, and Local Authorities

Standard Build: 770 Litres Galvanised. Steel Bottle Recycling Bin Fitted with High Dome 2 Aperture Brush Lid suitable for recycling Both Glass and Plastic Bottles With Internally Welded Seams, Welded On Comb Bar, Danish Side Handles.EN840 compliant, Internally seam welded Hot dip galvanised body Welded comb bar, X 4 200 mm Steel Centred bolt-on On Castors For Easy Replacement, X 2 Foot Operated Standard Side Braked Castors X 2 Swivel Rear Castors Fitted with Black Duraflex Back Trade Lid, Lock and Base Drain Plug. Prices from: £405.00 Excluding VAT. (12 Month Warranty) Delivery Time 2-4  Working Weeks From Dispatch

Fully EN840 tested and built to our demanding standards, the Taylor Mk2 770 waste container offers a tried and tested solution with a range of bespoke colours and logos that can be customised to your requirements.

The 770 recycling bin is also available as a towing container, making it perfect for multi-site collection points where manoeuvrability is essential.

Galvanised Steel Body, hot-dipped galvanised steel along with fully internally welded seams, ensures robust protection in the harshest of environments and protects the container from internal corrosion due to residual waste being caught in exposed corners.

Taylor 770L Specification and Build 200mm Castor Options Variants

Steel-centred castor wheels manufactured with needle bearings, grease and rubber optimised for performance (we don’t offer plastic-centred castors)

200 mm Standard castors, Rubber tyres, Needle roller bearings, Trailing brakes, Pressed hubs, 3.5mm top plate, Zinc and clear passivate, 1230 Kgs static load rating, 690 Kgs dynamic load rating.

200 mm Heavy-duty Elastic or polyurethane tyres, Ball race bearings, leading brakes, Cast hubs, 5mm top plate, Zinc and gold passivate, 3000 Kg static load rating, 1500 kg dynamic load rating.

200 mm Heavy duty High-Speed Directional Towing Castors, Elastic or polyurethane tyres, Ball race bearings, Leading brakes, Cast hubs, 5mm top plate, Zinc and gold passivate, 3000 Kgs static load rating, 1500kgs dynamic load rating.

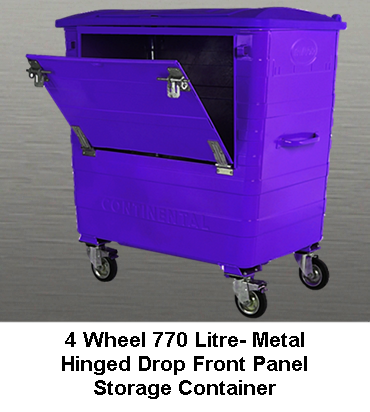

Available with either a drop front or drop-back panel

Choice of 12 Colour Powder Coated Base Options

Taylor, 4 Wheel Metal Bins. Taylor 770L is fully EN840 compliant. The powder-coated body means it has higher resistance against scuffs, scratches, corrosion and colour discolouration/fading.

Available in 12 Standard Colours

For further information and prices regarding the 770 Litre recycling bins, please phone DJE on 01709-730341 or contact us via the contact

For any Sales Email Enquiries via the Contact Form or Phone Call, we can usually submit a Full Quotation within 4 Working Hours

The drawing shows standard build Taylor MK2 770L dimensions  fitted with Danish Handles
