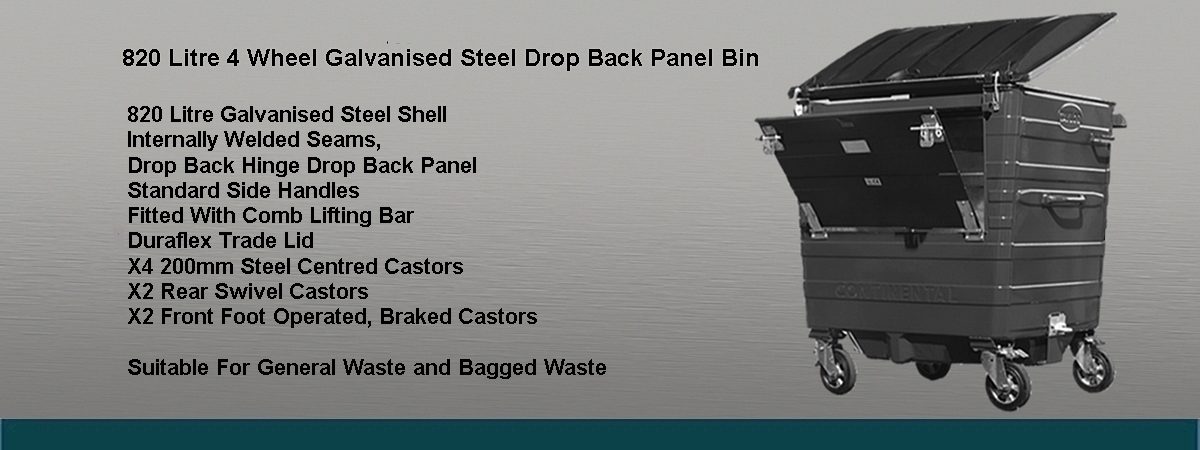

Taylor Mk4 820 is available 4 Wheel Steel Bin Container Drop  Back Panel containers have been created to help avoid the health and safety risks associated with handballing bagged or bulky waste, often an essential requirement within retail and manufacturing environments. Mk4 820 4 Wheel Steel bin Container is ideal for your medium to large collections where space is limited. With the same footprint as 770, the sump base creates extra storage capacity whilst retaining the same superb towing capability as the smaller model.

Taylor Mk4 820 4 Wheel Metal Drop Back Panel Bin suitable panel handballing bagged or bulky waste, often an essential requirement within retail and manufacturing environments is ideal for your medium to large collections where space is limited. The same footprint as 770, the sump base creates extra storage capacity whilst retaining the same superb towing capability as the smaller model also available with internal and external fork pockets 820 Drop Back / Front comes standard with a comb bar; please note a drop front panel bin isn’t fitted with a comb bar Drop Back Panel bin.

820L steel body, Hot-Dipped Galvanised Steel along with internally welded seams, ensures robust protection in the harshest of environments and protects the container from internal corrosion due to residual waste being caught in exposed corners. plagues less well-made metal waste containers. With full EN840 certification, they will give you exceptional lifetime value with limited downtime, unlike plastic and other alternative steel commercial trade waste bins.

Internally welded seams stop water penetration, preventing corrosion.

All four castors are 200mm steel-centred rubber-tyred swivel castors, two of which are fitted with trailing brakes (Brakes are press to lock, press to release)

All four castors are Steel centred wheels manufactured with needle bearings, grease and rubber optimised for performance steel centred rubber-tyred swivel castors, two of which are fitted with trailing brakes (Brakes are press to lock, press to release) are bolted on for an easy replacement. Two foot operated, trailing braking wheels at the front with two swivel wheels at the back. (Not Welded On or Plastic Centred Castors)

Also available with Castors Options


Heavy Duty 20mm Casters: Mainly used with bins fitted with heavy duty base, suitable for dense waste materials (Food Waste) and also for loading waste compactors and bins fitted with External fork pockets.

None marking castors are mainly used by Airports and Hotel lobbies, Schools, Hospitals, Offices, and Shopping Centres, which have none, marking floor Vinyl, Epoxy, or Laminate Floor covering.

Continental Towing containers are fully adapted and built with a heavy-duty reinforced base heavy-duty Power castors and a removable tow link system allowing up to 4 wheeled containers to be moved at a time subject to bin size and materials, ground conditions and material weights.

Bin Towing Containers provides a safe, practical answer to all towing requirements. Any container which is to be towed should be fitted with heavy-duty Power Towing castors or two swivel castors complete with directional locks, at one end of the container and no more than four containers are towed at any one time.

Heavy Duty Power Towing Castors  2 Swivel 2 Directional Lock is designed for towing up to 4 bins also the base is heavy-duty built.

Lids are Rotary-molded double-skin plastic with a minimum weight of 5.0 kilos manufactured in an aluminium mould for a superior finish.

Standard Lid

Dimensions Duraflex Taylor -MA4929 Trade Waste 4 Wheel Bin Container lid Flat lid to fit Taylor 820 litre bin 820 litre bin. L: 737mm x W: 1237mm x H: 81mm

Flap Lid

Dimensions Duraflex Taylor: ML0770RM-FLA Recycling lid with plastic flap To fit Taylor 820 Ltr container L: 738mm x W:1239mm x H162mm Plastic Flap Aperture Size: W:500mm H:150mm: High Dome and Deep Ribbing Provides Exceptional Strength

Designed for paper or plastics recycling and charity shops. The flap-opening lid is available in a wide choice of colours

Advantages Powder Coating: Continental Bin,

The container is powder powder-coated option using polyester powder, which is baked and cured in a controlled oven process Providing a layer of protection against corrosion, scratches/chipping and fading, Being one of the most long-lasting superior paint finishes, and has colour-durable quality finishes. For Further Information and a full quotation relating to  the Mk4 820 Drop Back Panel Waste Bin: Please Phone DJE On 01709-730341 Or Via the Contact Form or email us at info@djerecyclingsystems.com

Drawing Showing Dimensions Mk4 820L Drop Back Panel Bin

Bin Compliances:

• Double tank method as dictated by European Standard BS EN 840
• Quality Control Certification to BS EN ISO 9001:2000
• Bin comply in full with European Standard BS EN 840
• Certification to Environmental Standard BS EN ISO 14001
• Recycling bins comply in full with ‘The Noise and Emission in the Environment by Equipment for Use Outdoors Regulation 2001’. BSENISO3744:1985
• Hot-dip galvanised to meet BS EN 1461: 2009
• Bin body steel, all joints fully welded with all internal body seams continuously welded. All steel parts are galvanised after manufacture to meet BS 729.
• Galvanised steel body with internal fully welded seams

Web Page Disclaimer: (All Images and Colour Charts Drawings are for guild line purposes)
