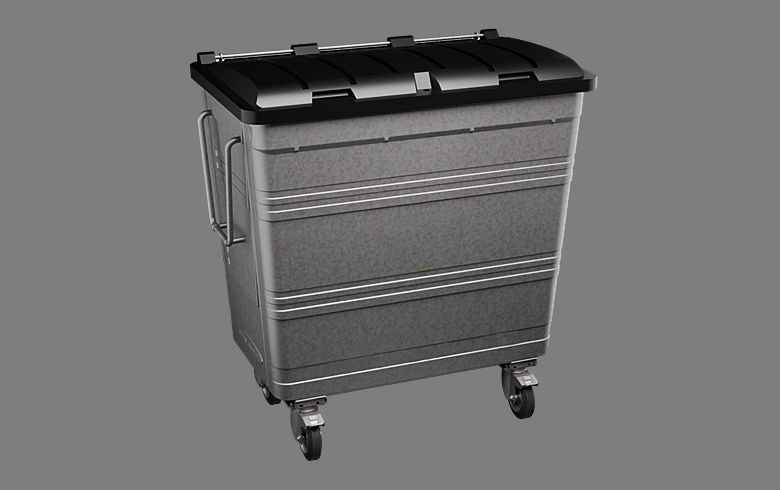

Taylor Mk2 770 Trade: The Taylor Mk2 770 offers the perfect medium-sized solution for your waste containment needs in a compact footprint.
Standard Build: 770 Litres Galvanised. Steel General Waste Bin with Internally Welded Seams, Welded-On Comb Bar, Danish Side Handles. EN840 compliant, internally seam-welded Hot dip galvanised body, Welded comb bar, X 4 200mm Steel Centred Bolt On Castors For Easy Replacement, X 2 Foot Operated Standard Side Braked Castors X 2 Swivel Rear Castors Fitted with Black Duraflex Back Trade Lid, Lock and Base Drain Plug. Prices from: £368.00 Excluding VAT. (12 Month Warranty) Delivery Time 2-4 Working Weeks From Dispatch
None Standard Build Options and Bin Finishes:
X 4 200mm Steel Centred Bolt On Castors For Easy Replacement, X 2 Foot Operated Braked Castors X 2 Swivel Rear Castors Options: Side loading DIN points, Powder coated body 12 colour options (See Colour Chart )
3 Lid types & apertures, Duraflex Black Trade Lid, High Dome 2 Aperture Bottle Recycling Lid, High Dome Recycling Flap Lid 770 Clinical Waste : Drain plug varieties Standard Lid Drain Plug, (Rodent Replant Drain Pug) Powder coated body colour options (See Colour Chart), Standard vinyl graphics, Custom embossing External fork pockets X4 200mm or Heavy Duty High Speed 200mm Heavy Duty Directional towing castors, Towing Eye Towing Hitch, Bespoke vinyl graphics, Hinged Drop Front Panel Suitable For Materials Storage. Hinged Drop-Back Panel Suitable for General Waste.
.jpg){kind=small}
Image MK2 770L For Guild Line Purposes
Galvanised Steel Shell
Seam Welded Internally
Height 1370mm
Depth 790mm
Width 1290mm
S.W.L 308Kg
Fitted with Danish Handles
Welded Comb Bar
Standard Drain Plug
X4 Steel Centred 200mm Castors
2 Rear Swivel Castors, Front Foot Operated Locking Castors
3 Duraflex Lid Options
See Drawing At the Bottom Of the Page
The 770-litre waste container is fully EN840 certified, ensuring superb quality and safety

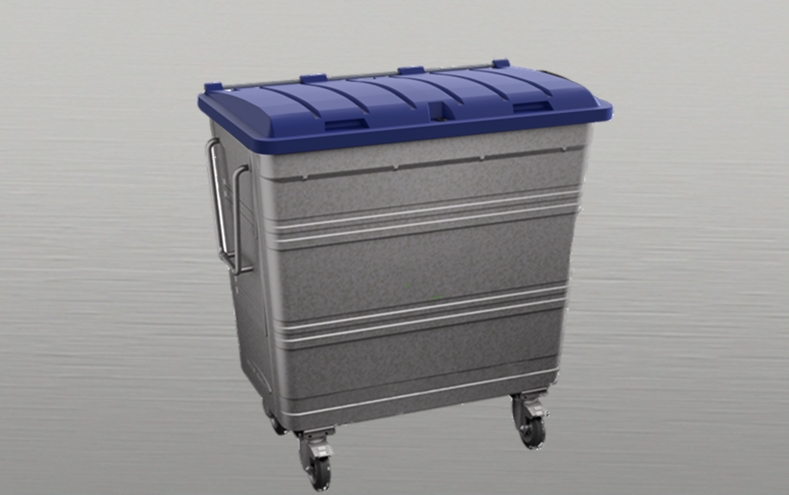

Taylor Mk2 770L: 770 Litre Trade Bin, Galvanised Steel Shell, Internally seams welded. The comb lifting bar is manufactured from 2.0mm** thick galvanised steel and features 7 gussets for additional strength. DuraFlex Trade Lid is manufactured from high-grade UV-stabilised polyethylene. With Standard Flat Trade Lid, Taylor 200mm Steel Centred castors, 2x Back / Rear swivel Castors, 2 x Foot operated braked castors foot operated, Danish Side Handles for easy Manoeuvrability in confined bin storage areas
- Galvanised Steel Body, hot-dipped galvanised steel along with fully internally welded seams, ensures robust protection in the harshest of environments and protects the container from internal corrosion due to residual waste being caught in exposed corners.
- The container can be a powder-coated option using polyester powder, which is baked and cured in a controlled oven process, providing a layer of protection against corrosion, scratches/chipping and fading, being one of the longest-lasting, superior paint finishes, and colour-durable quality available in 12 standard colours
- The Comb Bar is manufactured from a single piece of steel with welded end pieces and gussets.
- The top frame is a complete welded tube, not split or open-bend, with a diameter of 20mm. The use of the complete welded tube is very important here, as by using a complete tube, there are no holes or gaps in which waste can leak into the top frame itself when the container is lifted on emptying
- Container Bin Lids are Rotary-moulded double-skin plastic with a minimum weight of 5.0 kilos, manufactured in an aluminium mould for a superior finish with 12 Standard Colour Options.
- Container Bin Lid Options
- Standard Trade Lid
- 2 Aperture Bottle Brush Lid
- Recycling Flap Lid
- Bolt-on Castor Options for easy replacement
- Standard 200mm Steel Centred Castors
- Heavy Duty 200m Castors
- 200mm High-Speed Towing Castors
- None Marking 200mm Castors
Taylor Mk2 770L Specification And Build Variants.
All four castors are 200mm steel-centred rubber-tyred swivel castors, two of which are fitted with trailing brakes (Brakes are press to lock, press to release)
All four castors are 200mm steel-centred wheels manufactured with needle bearings, grease, and rubber optimised for performance steel-centred rubber-tyred swivel castors, two of which are fitted with trailing brakes (Brakes are press to lock, press to release) and are bolted on for easy replacement. Two-foot operated, trailing braking wheels at the front with two swivel wheels at the back. (Not Welded On or Plastic Centred Castors)
Also available with Castors Options
Heavy Duty 20mm Casters: Mainly used with bins fitted with a heavy-duty base, suitable for dense waste materials (Food Waste) and also for loading waste compactors and bins fitted with External and Internal fork pockets.
Non-marking casters are mainly used by Airports, hotel lobbies, Schools, Hospitals, Offices, and Shopping Centres, which have non-marking floor Vinyl, Epoxy, and Laminate Floor covering.
Continental Towing containers are fully adapted and built with a heavy-duty reinforced base, heavy-duty Power castors and a removable tow link system allowing up to 4 wheeled containers to be moved at a time, subject to bin size and materials, ground conditions, and material weights.
Heavy Duty Power Towing Castors 2 Swivel 2 Directional Lock is designed for towing up to 4 bins and also comes standard with a heavy-duty base, including a bolt-on towing hitch and eye.
Bin Towing Containers provide a safe, practical answer to all towing requirements. Any container that is to be towed should be fitted with heavy-duty Power Towing castors or two swivel castors complete with directional locks, at one end of the container, and no more than 4 containers are towed at any one time.
Please contact us on 01709 730341 if you need more information on “Towing Guidelines” or Castor Options and technical advice.
Available with either a drop front or drop-back panel
Continental Drop Front and Drop Back containers have been created to help avoid the health and safety risks associated with handballing bagged or bulky waste, often an essential requirement within retail and manufacturing environments or easy emptying, mainly used by charity shops.
Standard Build: 770 Litre 4 Wheel Galvanised Metal Hinged Drop Front Panel Storage Container: Fitted with Duraflex Black Trade Lid and Lid Lock- X 4 200 mm Bolt on Steel Centred Castors For Easy Replacement, 2 Front Braked Foot Operated Brake Locking Castors,2 Rear Swivel Castors. Not fitted with a Comb Lifting Bar, Base Drain Plug: Prices From £575.00 Plus VAT (12 Months Warranty)
Advantages of Powder Coating: Taylor Mk2 770L Bin,
The container can be a powder-coated option using polyester powder, which is baked and cured in a controlled oven process. Providing a layer of protection against corrosion, scratches/chipping and fading, being one of the longest-lasting, superior paint finishes, and a colour-durable quality finish.
DuraFlex Taylor Mk2 Trade Lid
.png)
Dimensions Duraflex Taylor-MA4929 Trade Waste 4 Wheel Bin Container lid Flat lid to fit Taylor 770 litre bin 770 litre bin. L: 737mm x W: 1237mm x H: 81mm With: 7 Ribs For Optimal Strength
Lids are Rotary-moulded double-skin plastic with a minimum weight of 5.0 kilos, manufactured in an aluminium mould for a superior finish with 12 Standard Colour Options.
770L Standard Trade Lid
The innovative rotary moulded, double-skinned lid is waterproof and extra strong. The lid lock plug can be removed for easy post-fitting of a lid lock.
Suitable for Trade waste, General waste, Black bag waste and. None recyclable materials
Bespoke Logos Can Be Applied To Any Bin, showing what can be correctly recycled
Logo Options
Effective use of a logo alongside an eye-catching paint scheme is a key aspect in the design of your bins and can convey a powerful brand image or message.
Container Bin Use. Personalise your containers with a complete range of Wrap logos or by adding bespoke logos.
For Further Information on the 770 Litre Trade Bin: Please Phone DJE At 01709-730341 Or Via the Contact Form
The 770L Litre Further Build and Finish Options
DIN Lift Points, Central Locking Castors, Bin Embossing,
Dimensions Taylor Mk2 770L Trade Bin
Bin Compliance:
- Double tank method as dictated by European Standard BS EN 840
- Quality Control Certification to BS EN ISO 9001:2000
- Bin comply in full with European Standard BS EN 840
- Certification to Environmental Standard BS EN ISO 14001
- Recycling bins comply in full with ‘The Noise and Emission in the Environment by Equipment for Use Outdoors Regulation 2001’. BSENISO3744:1985
- Hot-dip galvanised to meet BS EN 1461: 2009
- Body steel, all joints fully welded, with all internal body seams continuously welded. All steel parts are galvanised after manufacture to meet BS 729.
- Galvanised steel body with internal fully welded seams
.jpg)
