DJE RECYCLING SYSTEMS. SPECIALIST SUPPLIERS.TAYLOR 4 WHEEL GALVANISED STEEL METAL BINS: 46 BUILD VARIANTS, UN APPROVED CLINICAL WASTE BINS, TRADE WASTE BINS, BOTTLE RECYCLING BINS, GENERAL WASTE BINS, FOOD WASTE RECYCLING BINS, CHAMBERLAIN WASTE BINS, DOMESTIC WASTE BINS, GREEN WASTE RECYCLING  BINS, PAPER RECYCLING BINS, PLASTIC RECYCLING BINS, WEEE BIN, DUO SPLIT BIN, DROP FRONT or DROP BACK PANEL BINS, HIGH-SPEED TOWING BINS, INTERNAL FORK POCKETS, EXTERNAL FORK POCKETS, FOOT OPERATED LID OPTION, TAYLOR GALVANISED STEEL 4 WHEEL BINS, TRADE WASTE, RECYCLING BINS, DURAFLEX LIDS, TRADE LIDS, HIGH DOME RECYCLING FLAP LIDS, 2 APERTURE BOTTLE RECYCLING LIDS,3 LID LOCK OPTIONS, STANDARD HANDLES, DANISH HANDLES,200mm STEEL CENTRED BOLT ON CASTORS,4 OPTIONS, TELEPHONE:01709 730341 :Email:info@djerecyclingsystems.com:

«»
4 METAL 1 770 TRADE BIN
4 METAL 2 770 RECYCLING BIN
4 METAL 3 770 BOTTLE BIN
8 METAL 3 770 DROP FRONT
9 METAL 3 770 DROP BACK

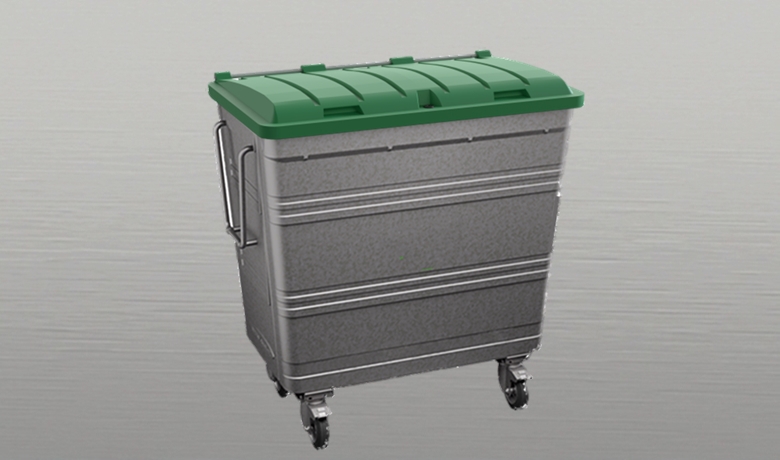

The Taylor Mk2 770L Trade Waste Container The Continental 770 litre Trade Waste bin offers the perfect medium-sized solution for your waste containment needs in a compact footprint where access may be an issue and space is limited.

Suitable for: Distribution Centres, Industrial Applications, Manufacturing, Factory, Warehouses, Shops, Shopping Centres, Hotels, Catering, Takeaways  Housing Associations, Hospitals, Surgeries, Garages, Airports, Ferries, Schools and Colleges, to name but a few so please phone DJE Recycling Bins on 01709-730341 so we can discuss your requirements or Via The Contact Us Link

770 Litre Continental Galvanised Steel with internally welded seams ensures robust protection in the harshest of environments and protects the container from internal corrosion due to residual waste being caught in exposed corners. Internally welded seams stop water penetration.

Highly Durable Galvanised Steel Body

Steel-centred castor wheels manufactured with needle bearings, grease and rubber optimised for performance (we don’t offer plastic-centred castors)

Fully Internally welded seams prevent internal corrosion, whilst the hard-wearing galvanized steel body and base make for a durable, long-lasting container that delivers exceptional lifetime value.

The top frame is a complete welded tube, not split or open bend, with a diameter of 20mm. The use of the complete welded tube is very important here, as by using a complete tube there are no holes or gaps in which waste can leak into the top frame itself when the container is lifted on emptying.

The Comb Bar is manufactured from a single piece of steel with welded end pieces and gussets.

770 Litre trade waste steel body, Hot-Dipped Galvanised Steel along with internally welded seams, ensures robust protection in the harshest of environments and protects the container from internal corrosion due to residual waste being caught in exposed corners.

Foot Operated Bin Lid Opening

770L can be fitted with a foot-operated Standard Lid Specifically adapted for situations in which bulky items can limit the use of both hands for opening the lid, The foot-operated system is perfect for black bagged waste general waste. This simple operation, yet effective foot-operated pedal bin system at the base of the container takes the slightest effort to raise the lid, therefore freeing up your arms and reducing the risk of injury if carrying awkward loads and boxes. Ideal for bin stores and bin sheds.

Available with either a Drop Front or Drop Back Panel
Continental Drop Front and Drop Back containers have been created to help avoid the health and safety risks associated with handballing bagged or bulky waste, often an important requirement within retail and manufacturing environments and is easy to empty please note *Drop front panel bin isn’t fitted with comb but can be fitted with weld on DIN lift points.

All four castors are 200mm Steel centred wheels manufactured with needle bearings, grease and rubber optimised for performance steel-centred rubber-tyred swivel castors, two of which are fitted with trailing brakes (Brakes are press to lock, press to release) are bolted on for easy replacement. Two-foot operated, trailing braking wheels at the front with two swivel wheels at the back. (Not Welded On or Plastic Centred Castors) 200 mm Standard castors Rubber tyres, Needle roller bearings, Trailing brakes, Pressed hubs, 3.5mm top plate, Zinc and clear passivate, 1230 Kgs static load rating, 690 Kgs dynamic load rating.

Caster Options:

Heavy Duty 200mm Casters: Mainly used with bins fitted with heavy-duty base, suitable for dense waste materials (Food Waste) and also for loading waste compactors and bins fitted with External and Internal fork pockets.200 mm Heavy duty Elastic or polyurethane tyres, Ball race bearings, Leading brakes, Cast hubs, 5mm top plate, Zinc and gold passivate, 3000 Kgs static load rating, 1500kgs dynamic load rating.

Non-marking castors are mainly used by Airports and Hotel lobbies, Schools, Hospitals, Offices, and Shopping Centres, which have none, marking floor Vinyl, Epoxy, and Laminate Floor covering.

Heavy Duty Power Towing Castors 2 Swivel 2 Directional Lock is designed for towing up to 4 bins and also comes standard with heavy duty base, including bolt-on towing hitch and eye. 200 mm Heavy duty High-Speed Directional Towing Castors Elastic or polyurethane tyres, Ball race bearings, Leading brakes, Cast hubs, 5mm top plate, Zinc and gold passivate, 3000 Kgs static load rating, 1500kgs dynamic load rating.

Bin Towing Containers provide a safe, practical answer to all towing requirements. Any container which is to be towed should be fitted with heavy-duty Power Towing castors or two swivel castors complete with directional locks, at one end of the container and no more than 4 containers are towed at any one time.

Please contact us on 01709 730341 if you need more information on “Towing Guidelines” or Castor Options and technical advice

Advantages Powder Coating: Taylor Mk2 770 Bin
The 770L can be a powder-coated option using polyester powder, which is baked and cured in a controlled oven process Providing a layer of protection against corrosion, scratches/chipping and fading,


Mk2 770 Trade Lid

Mk2 770L lid is up to 4 times lighter than metal lids, thereby considerably reducing the risk of accidents to waste operatives and members of the public.

The lightweight construction of DuraFlex lids, made from high-grade UV-stabilised polyethylene, gives the same stability as heavier metal lids.
A rotomoulded DuraFlex lid can be bent or crushed several times and still revert to its original shape.

Lid Colour Option:

The Mk2 770L Trade Waste bin can be supplied without a lid if used indoors for manufacturing and recycling applications.

Build Options
DIN points, Custom embossing, Drain plug options, External fork pockets, Different handle options Standard and Danish, heavy-duty base, Central locking castors, Lid Locks,

For Further Information on the 770 Litre Trade Waste Bin: Please Phone DJE On 01709-730341 Or Via the Contact Form.



Taylor Mk2 770L Standard Bin Dimensions

Maximum Payload SWL should not Exceed 308 Kgs
