DJE RECYCLING SYSTEMS. SPECIALIST SUPPLIERS. BIOMASS.BIOWASTE. HOOKLIFTS. MATERIAL RECYCLING HOOKLIFT CONTAINERS.CONTINENTAL RECYCLING BINS.TELEPHONE: 01709 730341:Email:info@djerecyclingsystems.com:



«»
DJE TAYLOR 6
DJE TAYLOR 7
DJE TAYLOR 3
DJE TAYLOR 4
DJE TAYLOR 5



Designed to allow the collection of separate waste streams in the same footprint as the industry standard 1100 Litre container. The Taylor Duo Bin is ideal for customers with restricted space for multiple containers but needs to be source segregate.

The split lid operation rests upon a dividing plate, which also operates as a rain channel to prevent seepage into the bin and the potential to contaminate dry recyclables.

The container can even be dual coloured and logoed to really get the message across that the two sides can contain different materials. And with independently lockable lids either side of the Continental Duo Bin can be collected independently by a standard collection vehicle

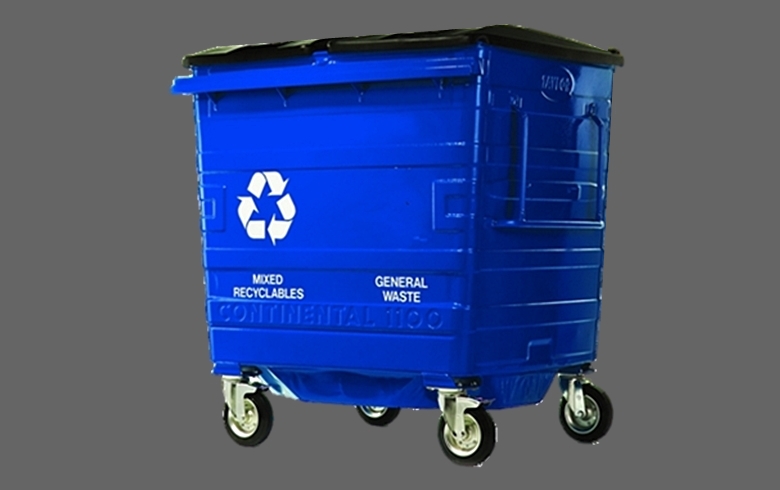

Continental Duo Bin

Designed to allow the collection of separate waste streams in the same footprint as the industry standard 1100 Litre container.

The Continental Duo Bin is ideal for customers with restricted space for multiple containers but needs to be source segregated.

The split lid operation rests upon a dividing plate, which also operates as a rain channel to prevent seepage into the bin and the potential to contaminate dry recyclables

The container can even be dual coloured and logos to really get the message across that the two sides can contain different materials. And with independently lockable lids either side of the Continental Duo Bin can be collected independently by a standard collection vehicle.

Continental Duo Bin provides commercial enterprises with the perfect answer to the cost and space problems of having to accommodate separate bins for mixed recyclables and general waste. The Duo bin is divided into two equal sections, each providing approximately 550L capacity, and equipped with its own independently locking lid to cater for staggered waste collections. Duo bin means that organisations that operate in conditions where space is limited, or cost is a major consideration, can now employ just one waste container for recyclables and general waste, whereas two bins would have been required previously

Benefits of Continental Duo Recycling Bin




All Containers are internally seam welded to ensure water-tightness and prevent the ingress of waste into the joins, thus preventing premature corrosion.

Steel Bin is Hot-Dipped Galvanised Steel along with internally welded seams, ensures robust protection in the harshest of environments and protects the container from internal corrosion due to residual waste be caught in exposed corners. Internally welded seams stop water penetration.


Galvanised Steel Panels Front, Rear and Side Panels are constructed from 1.5mm Mild Steel Swages are between 2 to 7mm and panels have a bowed out geometry to spring out under heavy loads.

The top frame is a complete welded tube, not split or open bend, with a diameter of 20mm. The use of the complete welded tube is very important here, as by using a complete tube there are no holes or gaps in which waste can leak into the top frame itself when the container is lifted on emptying.

The Comb Bar is manufactured from a single piece of steel with welded end pieces and gussets.

1100 Litre Duo Bin Galvanised Steel Body, Hot-Dipped Galvanised Steel along with internally welded seams, ensures robust protection in the harshest of environments and protects the container from internal corrosion due to residual waste being caught in exposed corners.

Internally welded seams stop water penetration, preventing the corrosion that plagues less well-made metal waste containers. Internally welded seams stop water penetration.

All Continental Galvanised Steel Recycling bins are fully EN 840 compliant (where applicable) to certify a safe and quality product is supplied and to ensure the product is compatible with all known lifting devices.

The patented top frame (where applicable) is an unbroken pressed steel tube designed to give maximum rigidity to the container during lifts for a longer life span.

The patented comb bar is Rolled section tube with a step profile to ensure maximum rigidity and safe and efficient fit on vehicle lifts. The lifting bar must integrate with all refuse collection vehicles meeting the specification in the European Standard EN 15.

All four castors are either 200mm Steel centred wheels manufactured with needle bearings, grease and rubber optimised for performance steel centred rubber-tyred swivel castors, two of which are fitted with trailing brakes (Brakes are press to lock, press to release) are bolted on for an easy replacement. Two foot operated, trailing braking wheels at the front with two swivel wheels at the back. (Not Welded On or Plastic Centred Castors)

The DUO Split bin is fitted with a Double Lid which is Rotary-molded double skin plastic with a minimum weight of 5.0 kilo manufactured in an aluminium mould for a superior finish.

Advantages Powder Coating: Taylor Continental Bin, Container is a powder-coated option using polyester powder, which is baked and cured in a controlled oven process Providing a layer of protection against corrosion, scratches/chipping and fading, Being one of the most long-lasting superior paint finishes, and colour-durable quality finishes. Which is then baked on through the High-Temperature Conveyor Drying System. Unlike a wet paint finish.

Reflecting its dual recycling role, the Duo can be painted in two distinct colours and is equipped with different colour lids as standard for each separate compartment. In common with all Continental bins, both body and lids of the Duo can be colour customised to meet individual customer requirements.

This is important to enable users filling the bins and also contractors and operators handling the Duo to instantly identify which compartment requires emptying at any one time.

Technical Drawing:

For Further Information on the 1100 Litre Duo Waste Bin: Please Phone DJE On: 01709-730341 Or Via the Contact Form

Bin Compliances:



  • Double tank method as dictated by European Standard BS EN 840
  • Quality Control Certification to BS EN ISO 9001:2000
  • Bin comply in full with European Standard BS EN 840
  • Certification to Environmental Standard BS EN ISO 14001
  • Recycling bins comply in full with ‘The Noise and Emission in the Environment by Equipment for use Outdoors Regulation 2001’. BSENISO3744:1985
  • Hot-dip galvanised to meet BS EN 1461: 2009
  • Bin body steel, all joints fully welded with all internal body seams continuously welded. All steel parts galvanised after manufacture to meet BS 729.
  • Galvanised steel body with internal fully welded seams
  • Castors Compliant with EN840
