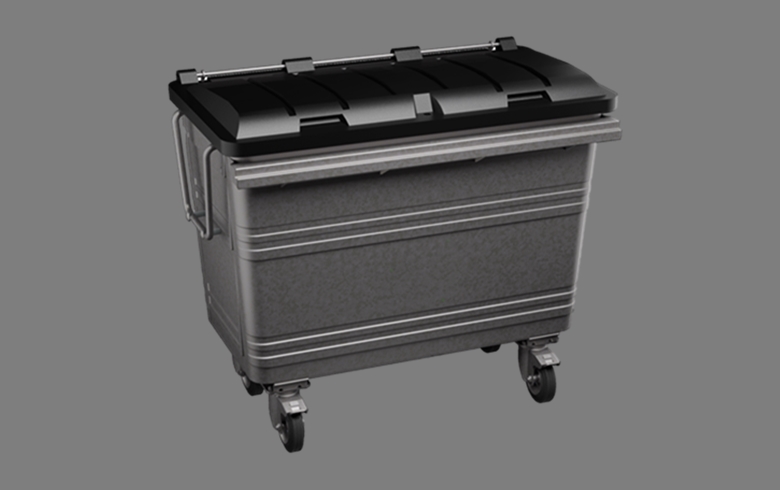

Taylor 500L: 500 Litre Capacity Trade Bin, Galvanised Steel Shell, Internally seams welded, lifting comb is manufactured from 2.0mm** thick galvanised steel and features 7 gussets for additional strength. Choice 3 Lid Options: DuraFlex Trade Lid, Recycling  High Dome Recycling Flap Lid and High Dome 2 Aperture Bush Lid suitable for Recycling Glass and Plastic Bottles.

Standard Build: 500 Litres Galvanised. Steel General Waste Recycling Bin with Internally Welded Seams, Welded On Comb Bar, EN840 compliant, Internally seam welded Hot dip galvanised body, Welded comb bar, X 4 160mm Steel Centred Bolt On Castors For Easy Replacement, X 2 Foot Operated Standard Side Braked Castors X 2 Swivel Rear Castors Fitted with Black Duraflex Back Trade Lid, Lock and Base Drain Plug. 500L will fit through any standard-width doorway. (12 Month Warranty) Delivery Time 2-4  Working Weeks From Manufacture to Delivery.



5 Standard Build Options and Bin Finishes:
X 4 200mm Steel Centred Bolt On Castors For Easy Replacement, X 2 Foot Operated Braked Castors X 2 Swivel Rear Castors Options: Side loading DIN points, Powder coated body 12 colour options (See Colour Chart )
4 Lid types & apertures, Duraflex Black Trade Lid, High Dome 2 Aperture Bottle Recycling Lid,  High Dome Recycling Flap Lid, Foot Operated Lid:   Drain plug varieties Standard Lid Drain Plug, (Rodent Replant Drain Pug) Powder coated body colour options (See Colour Chart), Standard vinyl graphics, BESPOKE Options: Heavy duty version ( Suitable For Food Waste Recycling, Custom embossing External fork pockets X4 200mm or Heavy Duty High Speed 160mm or 200mm  Directional towing castors, Towing Eye Towing Hitch, Bespoke vinyl graphics,  Hands Free Foot Operated Lid Duraflex Back Lid



Lids are manufactured from high-grade UV-stabilised Polyethylene. Come Standard with  Taylor 150mm steel-centred castors, 2 x Back / Rear swivel Castors, 2 x foot-operated braked castors, foot-operated, Standard Side Handles

The Taylor 500L Trade and Recycling Waste Bin, the smallest model in the series, is ideal for storing both indoor and outdoor waste. Its compact design and small footprint allow it to fit through standard-sized doorways.

500L Continental Galvanised Steel with internally welded seams ensures robust protection in the harshest of environments. It protects the container from internal corrosion due to residual waste being caught in exposed corners. Internally welded seams stop water penetration.

Image 500L For Guild Line Purposes
Galvanised Steel Shell
Seam Welded Internally
Height 1095mm
Depth 720mm
Width 1290mm
S.W.L 200Kg
Standard Handles
Welded Comb Bar
Standard Drain Plug
X4 Steel Centred 160mm Castors
2 Rear Swivel Castors: 2 Front Foot Operated Locking Castors
3 Duraflex Lid Options
See Drawing At the Bottom Of the Page

Taylor 500L: 500 Litre Capacity Trade Bin, Galvanised Steel Shell, Internally seams welded, lifting comb is manufactured from 2.0mm** thick galvanised steel and features 7 gussets for additional strength. DuraFlex Trade Lid is manufactured from high-grade UV-stabilised Polyethylene. Taylor 200mm Steel Centred castors, 2x Back / Rear swivel Castors, 2 x foot operated braked castors, foot operated, Standard Side Handles

Highly Durable Galvanised Steel Body

Steel-centred castor wheels manufactured with needle bearings, grease, and rubber optimised for performance (we don’t offer plastic-centred castors)

Internally welded seams prevent internal corrosion, whilst the hard-wearing galvanised steel body and base make for a durable, long-lasting container that delivers exceptional lifetime value.

The top frame is a complete welded tube, not split or open-bend, with a diameter of 20mm. The use of the complete welded tube is very important here, as by using a complete tube, there are no holes or gaps in which waste can leak into the top frame itself when the container is lifted on emptying.

The Comb Bar is manufactured from a single piece of steel with welded end pieces and gussets.

500 Litre trade waste steel body, Hot-Dipped Galvanised Steel, along with internally welded seams, ensures robust protection in the harshest of environments and protects the container from internal corrosion due to residual waste being caught in exposed corners.

Foot-Operated Bin Lid Opening

500L is also available with a foot-operated standard lid specifically adapted for situations in which bulky items can limit the use of both hands when opening the lid. The foot-operated system is perfect for black-bagged waste and general waste. This simple, yet effective, foot-operated pedal bin system at the base of the container takes the slightest effort to raise the lid, therefore freeing up your arms and reducing the risk of injury if carrying awkward loads and boxes. Ideal for bin stores and bin sheds.

Standard Build: 500 Litre Galvanised. Steel General Waste Recycling Bin, Fitted with Hands-Free Foot-Operated Lid. Internally Welded Seams, Welded On Comb Bar, X 4 160mm Steel Centred Bolt On Castors For Easy Replacement, X 2 Foot Operated Braked Castors X 2 Swivel Rear Castors Fitted with Black Duraflex Back  Foot Operated Lid, Lock and Base Drain Plug. Prices from: £526.00 Excluding VAT. 500 will fit through any standard-width doorway. (12 Month Warranty)

All four castors are 150mm steel-centred wheels manufactured with needle bearings, grease, and rubber optimised for performance steel-centred rubber-tyred swivel castors, two of which are fitted with trailing brakes (Brakes are foot-pressed to lock, press to release) and are bolted on for easy replacement. Two-foot operated, trailing braking wheels at the front with two swivel wheels at the back. (Not Welded On or Plastic Centred Castors) 200 mm Standard castors, Rubber tyres, Needle roller bearings, Trailing brakes, Pressed hubs, 3.5mm top plate, Zinc and clear passivate, 1230 Kgs static load rating, 690 Kgs dynamic load rating.

Advantages of Powder Coating: Taylor Continental Bin

The container 500L can be a powder-coated option using polyester powder, which is baked and cured in a controlled oven process providing a layer of protection against corrosion, scratches/chipping, and fading. Bin Colour Options:

The Taylor 500L Trade Waste bin can be supplied without a lid if used indoors for manufacturing and recycling applications.

Build Options

DIN points, Custom embossing, Drain plug options, External fork pockets, Heavy Duty Base, Central locking castors, Lid Locks,

For further information on the 500 Litre Trade Waste Bin, please phone DJE at 01709-730341 or via the contact form.

Taylor 500L Container Bin Recycling Lids are up to 4 times lighter than metal lids, thereby considerably reducing the risk of accidents to waste operatives and members of the public

DuraFlex Trade and Recycling Lids are impervious to water and climatic influences. They are maintenance-free and fundamentally easier to replace when damaged. A rotomoulded DuraFlex lid can be bent or crushed several times and still revert to its original shape. Duraflex Trade Lid 7 Ribs For Optional Strength. Rotationally moulded from UV-stabilised LMDPE; double-skinned walled;100% recyclable.

Lids are impervious to water and climatic influences. They are maintenance-free and fundamentally easier to replace when damaged. A rotomoulded DuraFlex bin container lids can be bent or crushed several times and still revert to its original shape.

Available with 3 lid lock options: Standard V Lock, Push Lid Lock and Forest Lock

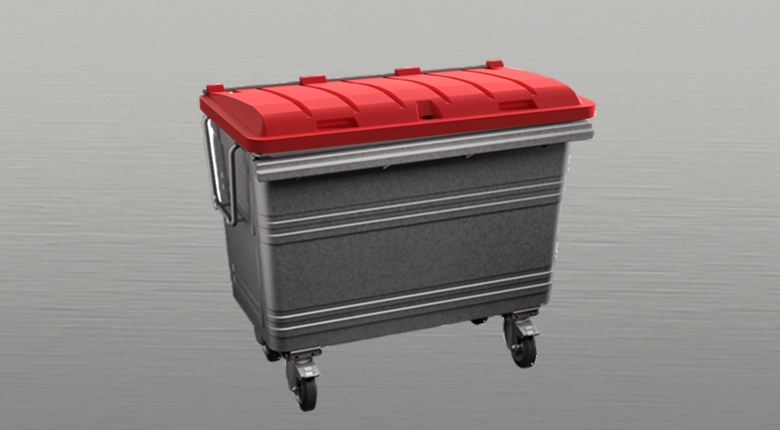

Dimension Duraflex Taylor - MA4927 Trade Waste 4 Wheel Bin Container lid Flat lid to fit Taylor 500 litre bins .L: 673mm x W:1233mm x H: 81mm.Taylor 500 Litre 4 Wheel Metal Trade Bin- Duraflex Flat Trade Lid Suitable For Trade Waste, General Waste, Household Domestic Waste, Industrial Waste, Non-Recyclable Waste Materials,

Available in 12 Colour Trade Lid Options
500L Lid Dimensions

Dimensions Duraflex Taylor: ML0660RM-FLA Recycling lid with plastic flap To fit Taylor's 500 ltr Bin Lid Container L: 671mm x W: 1237 mm x H: 158 mm

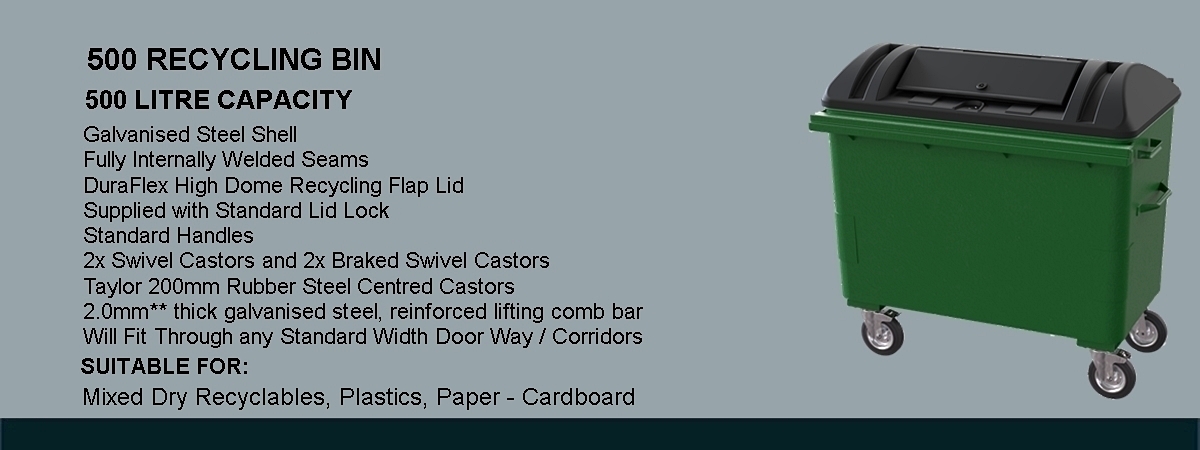

Standard Build: 500 Litres Galvanised. Steel Recycling Bin With Internally Welded Seams, Welded On Comb Bar, X 4 160mm Steel Centred Bolt On Castors For Easy Replacement, X 2 Foot Operated Braked Castors X 2 Swivel Rear Castors Fitted with Black Duraflex Back High Dome Flap Lid, Lock and Base Drain Plug. Prices from: £470.00 Excluding VAT. 500 L will fit through any standard-width doorway. (12 Months Warranty)

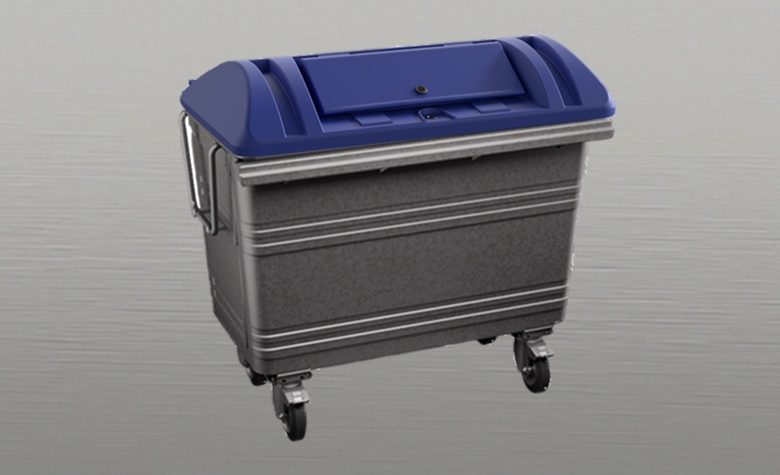

The Duraflex 500 recycling Flap Lid is designed for paper or plastics recycling. The flap-opening lid is available in a wide choice of colours from our range. Fitted with Flap Lid- Suitable for Recycling: Mixed Dry Recyclables Paper recycling - dry paper waste, newspapers, office paper and magazines. Cardboard  corrugated cardboard, cereal boxes and card, Metal cans  clean, empty drinks cans and food tins, Plastic – packaging films, empty drinks bottles, rinsed out milk bottles, clean salad trays, rinsed out microwaveable meal trays, margarine  tubs, glass jars, glass bottles NOT FOOD WASTE or None Recyclables Materials and Single-use Plastics,

12 Recycling Flap Lid Colour Options.

500L Recycling Lid Dimensions

Dimensions Duraflex Taylor: ML0660RM-BSA Recycling lid with brushes Taylor 500 Ltr 4 Wheel Bin  container L: 671mm x W: 1237mm H:158mm x 2 175mm Brush Diameter
Fitted With High Dome 2 Aperture Brush Lid
Heavy Duty Bin Base
Suitable For: Glass Bottles, Plastic Bottles, Hospitality, Pubs, Hotels, Car Parks, Restaurants, Public Events, Local Authorities
Standard Build:500 Litre Galvanised Steel. Bottle Steel Recycling Bin with Internally Welded Seams, Welded On Comb Bar, X 4 160mm Steel Centred Bolt On Castors For Easy Replacement, X 2 Foot Operated Braked Castors X 2 Swivel Rear Castors Fitted with Black Duraflex High Dome 2 Aperture Recycling Bottle Brush Lid, Lid Lock and Drain Plug. Prices from: £490.00 Excluding VAT. 500L will fit through any standard-width doorway. (12 Month Warranty)

2 Aperture Brush Lid Colour Options

500L High Dome Bottle Recycling Lid Dimensions

Suitable For Towing Up to 4 Bins

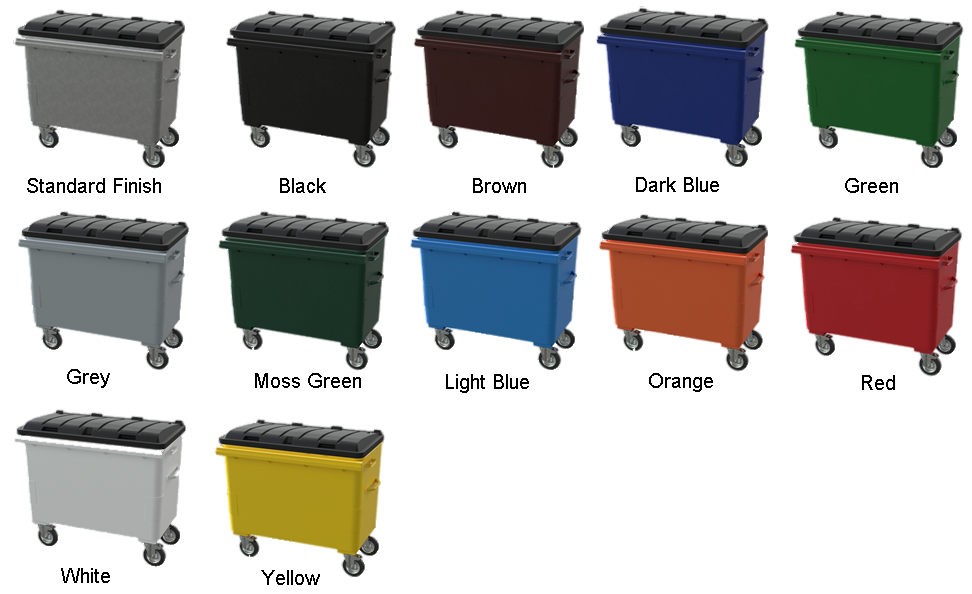

500 Bin Lid Container Colour Options

 500 Litre Dimensions
